TMS320F28335PGFA Datasheet, Pinout, Application

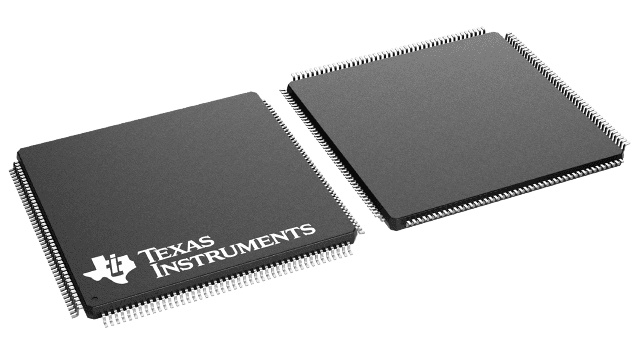

TMS320F28335PGFA:512KB 256K x 16 FLASH C28x 32-Bit Microcontroller C2000™ C28x Delfino™ Series 320F28335 176 Pin 150MHz 1.9V 176-LQFP
Catalog
TMS320F28335PGFA Overview
TMS320F28335PGFA Feature
TMS320F28335PGFA Pinout
TMS320F28335PGFA CAD-Model
TMS320F28335PGFA Application
TMS320F28335PGFA Alternative
TMS320F28335PGFA Block Diagram
TMS320F28335PGFA Datasheet
Specifications
Product comparison
TMS320F28335PGFA Overview
The TMS320F28335PGFA is a microcontroller from the TMS320F2833x series, which is part of the Texas Instruments (TI) C2000 family. It is specifically designed for real-time control applications and offers high performance and flexibility.
The microcontroller is based on a 32-bit C28x CPU core, which operates at a maximum frequency of 150 MHz. It includes various integrated peripherals, such as ADCs (Analog-to-Digital Converters), PWM (Pulse Width Modulation) modules, timers, communication interfaces (e.g., UART, SPI, I2C), and more.
The TMS320F28335PGFA also features a dedicated control law accelerator (CLA) co-processor, which enables parallel processing of control algorithms. This allows for efficient execution of complex control tasks while freeing up the main CPU for other operations.
TMS320F28335PGFA Feature
High-performance static CMOS technology
Up to 150 MHz (6.67-ns cycle time)
1.9-V/1.8-V core, 3.3-V I/O design
High-performance 32-bit CPU (TMS320C28x)
IEEE 754 single-precision Floating-Point Unit (FPU) (F2833x only)
16 × 16 and 32 × 32 MAC operations
16 × 16 dual MAC
Harvard bus architecture
Fast interrupt response and processing
The unified memory programming model
Code-efficient (in C/C++ and Assembly)
Six-channel DMA controller (for ADC, McBSP, ePWM, XINTF, and SARAM)
16-bit or 32-bit External Interface (XINTF)
More than 2M × 16 addresses reach
On-chip memory
F28335, F28333, F28235: 256K × 16 flash, 34K × 16 SARAM
F28334, F28234: 128K × 16 flash, 34K × 16 SARAM
F28332, F28232: 64K × 16 flash, 26K × 16 SARAM
1K × 16 OTP ROM
Boot ROM (8K × 16)
With software boot modes (through SCI, SPI, CAN, I2C, McBSP, XINTF, and parallel I/O)
Standard math tables
Clock and system control
On-chip oscillator
Watchdog timer module
GPIO0 to GPIO63 pins can be connected to one of the eight external core interrupts
Peripheral Interrupt Expansion (PIE) block that supports all 58 peripheral interrupts
128-bit security key/lock
Protects flash/OTP/RAM blocks
Prevents firmware reverse-engineering
Enhanced control peripherals
Up to 18 PWM outputs
Up to 6 HRPWM outputs with 150-ps MEP resolution
Up to 6 event capture inputs
Up to 2 Quadrature Encoder interfaces
Up to 8 32-bit timers (6 for eCAPs and 2 for eQEPs)
Up to 9 16-bit timers (6 for ePWMs and 3 XINTCTRs)
Three 32-bit CPU timers
Serial port peripherals
Up to 2 CAN modules
Up to 3 SCI (UART) modules
Up to 2 McBSP modules (configurable as SPI)
One SPI module
One Inter-Integrated Circuit (I2C) bus
12-bit ADC, 16 channels
80-ns conversion rate
2 × 8 channel input multiplexer
Two sample-and-hold
Single/simultaneous conversions
Internal or external reference
Up to 88 individually programmable, multiplexed GPIO pins with input filtering
JTAG boundary scan support
IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary-Scan Architecture
Advanced emulation features
Analysis and breakpoint functions
Real-time debug using hardware
Development support includes
ANSI C/C++ compiler/assembler/linker
Code Composer Studio? IDE
DSP/BIOS? and SYS/BIOS
Digital motor control and digital power software libraries
Low-power modes and power savings
IDLE, STANDBY, HALT modes supported
Disable individual peripheral clocks
Endianness: Little-endian
Package options:
Lead-free, green packaging
176-ball Plastic Ball Grid Array (BGA) (ZJZ)
179-ball MicroStar BGA? (ZHH)
176-pin Low-Profile Quad Flatpack (LQFP) (PGF)
176-pin Thermally Enhanced Low-Profile Quad Flatpack (HLQFP) (PTP)
Temperature options:
A: –40°C to 85°C (PGF, ZHH, ZJZ)
S: –40°C to 125°C (PTP, ZJZ)
Q: –40°C to 125°C (PTP, ZJZ) (AEC Q100 qualification for automotive applications)
TMS320F28335PGFA Pinout
TMS320F28335PGFA CAD-Model
Symbol
Footprint
3D-Model
TMS320F28335PGFA Applications
Advanced driver assistance systems (ADAS)
一Medium/short range radar
Building automation
一HVAC motor control
一Traction inverter motor control
Factory automation & control
一Automated sorting equipment
一CNC control
Grid infrastructure
一 Central inverter
一String inverter
Hybrid, electric & powertrain systems
一Inverter & motor control
一On-board (OBC) & wireless charger
Motor drives
一AC-input BLDC motor drive
一Servo drive control module
Power delivery
一Industrial AC-DC
TMS320F28335PGFA Alternatives
STM32F4 series from STMicroelectronics: These microcontrollers are based on the ARM Cortex-M4 core and offer a wide range of performance and feature options. They provide a rich set of peripherals, including ADCs, PWM modules, timers, communication interfaces, and more.
PIC32MZ series from Microchip: These microcontrollers are based on the MIPS M-Class core and offer high-performance computing capabilities. They come with a variety of integrated peripherals, including ADCs, PWM modules, timers, communication interfaces, and more.
MSP430 series from Texas Instruments: These microcontrollers are designed for ultra-low-power applications and offer a wide range of performance options. They come with integrated peripherals, including ADCs, PWM modules, timers, communication interfaces, and more.
LPC546xx series from NXP Semiconductors: These microcontrollers are based on the ARM Cortex-M4 core and offer a balance between performance and power consumption. They provide a rich set of peripherals, including ADCs, PWM modules, timers, communication interfaces, and more.
TMS320F28335PGFA Block Diagram
TMS320F28335PGFA Datasheet
Please DOWNLOAD the datasheets and manufacturer documentation for the TMS320F28335PGFA .
