ADRV9009BBCZ Overview
The ADRV9009 is a highly integrated RF agile transceiver with dual transmitters and receivers, integrated synthesizers, and digital signal processing functions. It is designed for high performance and low power consumption in 3G, 4G, and 5G macro cell TDD base station applications. The IC includes automatic and manual attenuation control, DC offset correction, QEC, and digital filtering in the receive subsystem, eliminating the need for these functions in the digital baseband. It also features AGC, flexible external gain control modes, ADCs, DACs, GPIOs, and power amplifier and RF front-end control integration. The core can be powered directly from 1.3V and 1.8V regulators, controlled via a 4-wire serial port, and has comprehensive power-down modes for minimizing power consumption. Packaged in a 12mm × 12mm CSP_BGA, the ADRV9009 offers significant flexibility and performance in RF applications.
If you are findiing ADRV9009BBCZ datasheet pdf, Please swipe to the last two part for Downloading ADRV9009BBCZ datasheets, ADRV9009BBCZ specifications and manufacturer documentation.

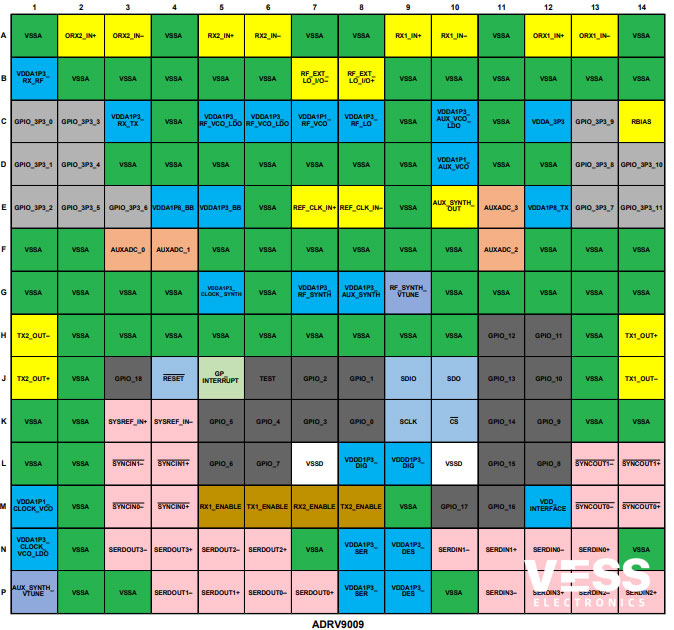

ADRV9009BBCZ Pinout
ADRV9009BBCZ Features
Dual transmitters
Dual receivers
Dual input shared observation receiver
Maximum receiver bandwidth: 200 MHz
Maximum tunable transmitter synthesis bandwidth:
450 MHz
Maximum observation receiver bandwidth: 450 MHz
Fully integrated fractional-N RF synthesizers
Fully integrated clock synthesizer
Multichip phase synchronization for RF LO and baseband
clocks
JESD204B datapath interface
Tuning range (center frequency): 75 MHz to 6000 MHz
ADRV9009BBCZ CAD-Model
Symbol

Footprint

3D-model

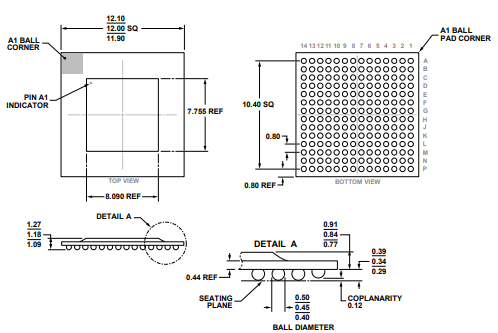

ADRV9009BBCZ Package Information

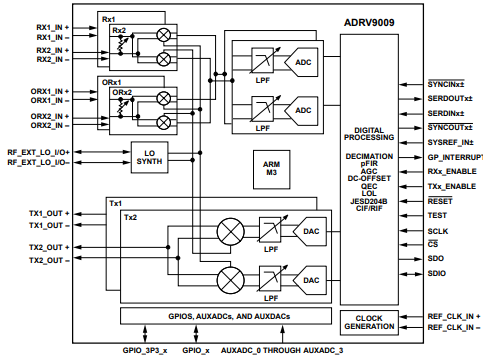

ADRV9009BBCZ Block Diagram

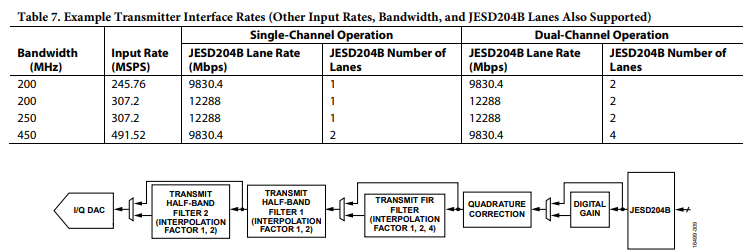

Transmitter Datapath Filter Implementation

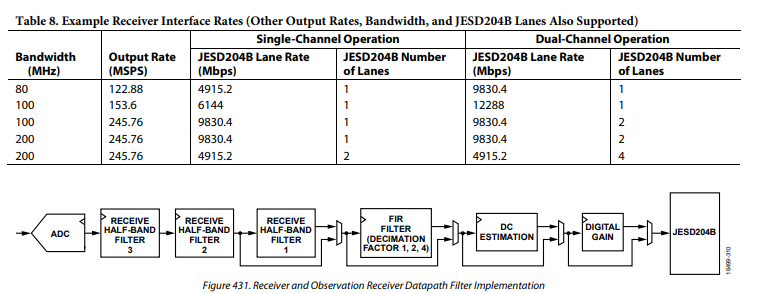

Receiver and Observation Receiver Datapath Filter Implementation

ADRV9009BBCZ Equivalent
ADRV9008: This is another RF transceiver from Analog Devices that offers similar features to the ADRV9009BBCZ but with some differences in terms of specifications and capabilities.
ADRV9026: Another RF transceiver from Analog Devices that may offer comparable performance and features to the ADRV9009BBCZ.
Silicon Labs, Maxim Integrated, and Texas Instruments also offer a range of RF transceivers that could potentially serve as alternatives to the ADRV9009BBCZ.
ADRV9009BBCZ Application
3G, 4G, and 5G TDD macrocell base stations
TDD active antenna systems
Massive multiple input, multiple output (MIMO)
Phased array radar
Electronic warfare
Military communications
Portable test equipment
ADRV9009BBCZ Theory Of Operation
The ADRV9009 is a highly integrated RF transmitter subsystem capable of configuration for a wide range of applications. The device integrates all RF, mixed-signal, and digital blocks necessary to provide all transmitter traffic and DPD observation receiver functions in a single device. Programmability allows the transmitter to be adapted for use in many TDD systems and 3G/4G/5G cellular standards. The ADRV9009 contains four high speed serial interface links for the transmitter chain, and two high speed links each for the receiver and observation receiver chains. The links are JESD204B, Subclass 1 compliant. The two receiver lanes can be reused for the observation receiver, providing a low pin count and a reliable data interface to field programmable
gate arrays (FPGAs) or integrated baseband solutions.
The ADRV9009 also provides tracking correction of dc offset QEC errors and transmitter LO leakage to maintain high performance under varying temperatures and input signal conditions. The device also includes test modes that allow system designers to debug designs during prototyping and to optimize radio configurations.
Specifications
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- RF Transceiver Modules and Modems
- Antenna Type :
- -
- Current - Receiving :
- -
- Current - Transmitting :
- -
- Data Rate :
- 12.3Gbps
- Frequency :
- 75MHz ~ 6GHz
- Memory Size :
- -
- Modulation :
- -
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -40°C ~ 85°C
- Package / Case :
- 196-LFBGA, CSPBGA
- Power - Output :
- 9dBm
- Product Status :
- Active
- Protocol :
- -
- RF Family/Standard :
- Cellular
- Sensitivity :
- -
- Serial Interfaces :
- JTAG, SPI
- Utilized IC / Part :
- -
- Voltage - Supply :
- 1.3V ~ 1.8V
Datasheets
- Datasheets
- ADRV9009BBCZ
Product comparison
-
ImagePart NumberManufacturerToleranceVoltage - RatedProduct StatusPackage / CaseProduct CategoryView Compare
-
-
-
Active
289-LFBGA, CSPBGA
RF Transceiver ICs
-
-
-
Active
196-LFBGA, CSPBGA
RF Transceiver Modules and Modems
-
-
-
Active
196-LFBGA, CSPBGA
RF Transceiver Modules and Modems
-
-
-
Active
196-LFBGA, CSPBGA
RF Transceiver Modules and Modems
Frequently Asked Questions
What is ADRV9009?
Electronic warfare. Military communications. Portable test equipment. GENERAL DESCRIPTION. The ADRV9009 is a highly integrated, radio frequency (RF), agile transceiver offering dual transmitters and receivers, integrated synthesizers, and digital signal processing functions.
-
