What is WS2812?
WS2812 LED light strips, also known as NeoPixel strips, have gained significant popularity in recent years due to their versatility, vibrant colors, and ease of use. These light strips consist of individually addressable RGB LEDs, allowing for stunning lighting effects and dynamic color patterns. Whether used for decorative purposes, ambient lighting, or creative projects, WS2812 LED light strips offer a range of benefits and possibilities.
One of the key advantages of WS2812 LED light strips is their flexibility. The strips are made of a thin, flexible PCB material, allowing them to be bent, curved, or even cut into smaller segments without damaging the functionality of the individual LEDs. This flexibility makes them suitable for a wide variety of applications, from lining the contours of furniture to creating intricate designs on costumes or art installations.
Another notable feature of WS2812 LED light strips is their individual addressability. Each LED on the strip can be controlled independently, enabling dynamic lighting effects and the creation of visually stunning patterns. This level of control allows for the customization of colors, brightness, and animation sequences, making them a popular choice for hobbyists, artists, and DIY enthusiasts.
WS2812 LED light strips are also known for their ease of use and compatibility. They can be easily controlled using microcontrollers, such as Arduino or Raspberry Pi, through popular libraries like FastLED or Adafruit NeoPixel. These libraries provide convenient functions for programming and controlling the LEDs, simplifying the process for beginners and experienced users alike.
Additionally, WS2812 LED light strips offer a wide range of colors and brightness levels. With their RGB LEDs, they can produce millions of colors, allowing for endless possibilities in creating captivating lighting displays. The brightness of the LEDs can also be adjusted, making them suitable for various ambient lighting needs, from subtle mood lighting to vibrant, attention-grabbing effects.
WS2812 LED light strips are energy-efficient, consuming minimal power while providing impressive lighting effects. This makes them an environmentally friendly choice compared to traditional lighting options. Additionally, the low power consumption allows for longer battery life when used in portable projects.
In conclusion, WS2812 LED light strips have revolutionized the world of decorative lighting and creative projects. With their flexibility, individual addressability, ease of use, and vibrant colors, they offer endless possibilities for customization and stunning visual effects. Whether used for home decor, art installations, or DIY projects, WS2812 LED light strips provide a captivating and versatile lighting solution.
How to use WS2812?

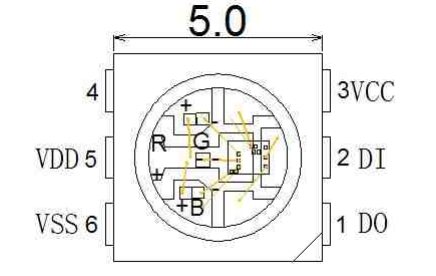

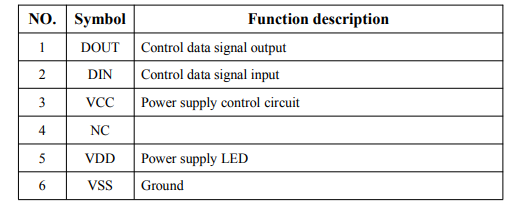

WS2812 Pinout
WS2812 CAD-Model
Symbol
Footprint
3D-Model
WS2812 Feature
Features and Benefits
●Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
●Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave form distortion not accumulate.
●Built-in electric reset circuit and power lost reset circuit.
●Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
●Cascading port transmission signal by single line.
●Any two point the distance more than 5m transmission signal without any increase circuit.
●When the refresh rate is 30fps, low speed model cascade number are not less than 512 points, high speed mode not
less than 1024 points.
●Send data at speeds of 800Kbps.
●The color of the light were highly consistent, cost-effective..
WS2812 Applications
●Full-color module, Full color soft lights a lamp strip.
●LED decorative lighting, Indoor/outdoor LED video irregular screen.
WS281 Application Circuit
WS2812 Alternatives

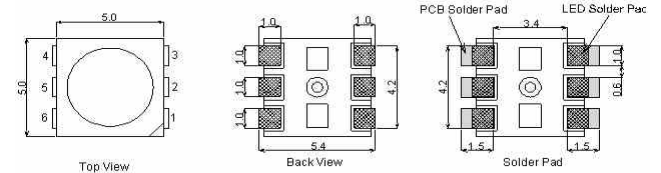

WS2812 Dimension
mechanical dimension
WS2812 vs. WS2812B
WS2812B
There is a difference between WS2812 and WS2812B LED light strips, although they are very similar in functionality and appearance.
1.The main difference lies in the integrated circuit (IC) used in each variant. The WS2812 LED light strip utilizes the WS2811 IC, while the WS2812B LED light strip uses the WS2812B IC. The WS2812B is an improved version of the WS2812, addressing some of the issues found in the original WS2812 design.
One key improvement in the WS2812B is the reverse voltage protection feature. The WS2812B IC has built-in protection against reverse polarity, which means that if the power supply is connected with the wrong polarity, it won’t damage the IC or the LEDs. This protection helps prevent accidental damage during installation or when connecting power sources.
Another difference is the timing requirements. The WS2812B has slightly different timing specifications compared to the WS2812. The WS2812B has a wider timing tolerance, making it more compatible with a broader range of microcontrollers and LED control libraries. This improved compatibility simplifies the process of controlling the LEDs and reduces the likelihood of timing-related issues.
In terms of appearance and electrical characteristics, WS2812 and WS2812B LED light strips are very similar. They both consist of individually addressable RGB LEDs mounted on a flexible PCB strip and offer the same vibrant color capabilities and ease of use.
It's worth noting that due to the improvements in the WS2812B, it has become more widely adopted and is generally recommended over the original WS2812. However, compatibility may vary depending on the specific microcontroller and library being used, so it’s always advisable to check the specifications and requirements of your project before making a choice between the two variants.)
2.The main difference lies in the integrated circuit (IC) used in each variant. The WS2812 LED light strip utilizes the WS2811 IC, while the WS2812B LED light strip uses the WS2812B IC. The WS2812B is an improved version of the WS2812, addressing some of the issues found in the original WS2812 design.
One key improvement in the WS2812B is the reverse voltage protection feature. The WS2812B IC has built-in protection against reverse polarity, which means that if the power supply is connected with the wrong polarity, it won’t damage the IC or the LEDs. This protection helps prevent accidental damage during installation or when connecting power sources.
Another difference is the timing requirements. The WS2812B has slightly different timing specifications compared to the WS2812. The WS2812B has a wider timing tolerance, making it more compatible with a broader range of microcontrollers and LED control libraries. This improved compatibility simplifies the process of controlling the LEDs and reduces the likelihood of timing-related issues.
