TLE4279GXUMA2 Voltage Regulator: Datasheet, Pinout, Feature
Today we are gong to share you guys this products: TLE4279GXUMA2: A Low Dropout Voltage Regulator for Reliable Power Supply
Catalog
TLE4279GMXUMA2 Overview
TLE4279GMXUMA2 Feature
TLE4279GMXUMA2 Pinout
TLE4279GMXUMA2 CAD-Model
TLE4279GMXUMA2 Application
TLE4279GMXUMA2 Alternative
TLE4279GMXUMA2 Block Diagram
TLE4279GMXUMA2 Datasheet
Specifications
Product comparison
Introduction:
The TLE4279GXUMA2 is a low dropout voltage regulator designed to provide a stable and reliable power supply for various electronic applications. With its compact size, high efficiency, and low power consumption, this voltage regulator is an excellent choice for projects that require a regulated 5V power source.

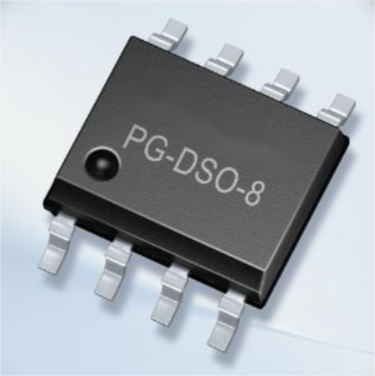

TLE4279GMXUMA2 Overview:
The TLE4279GMXUMA2 is a member of Infineon’s TLE4279 series of low dropout voltage regulators. It is capable of delivering a maximum output current of 150mA, making it suitable for powering small to medium-sized electronic devices. The 8-pin DSO package ensures easy integration into circuit designs.
The OPTIREG Linear TLE42794 is a monolithic integrated low dropout voltage regulator, especially designed for automotive applications. An input voltage up to 45 V is regulated to an output voltage of 5.0 V. The component is able to drive loads up to 150 mA. It is short-circuit protected by the implemented current limitation and has an integrated overtemperature shutdown. A reset signal is generated for an output voltage VQ,rt of typically 4.65 V. This threshold can be decreased by an external resistor divider. The power-on reset delay time can be programmed by the external delay capacitor. The additional sense comparator provides an early warning function: Any voltage (e.g. the input voltage) can be monitored, an under voltage condition is indicated by setting the comparator's output to low. If pull up resistors are desired at the outputs of the reset and the sense comparator, the TLE42694 with integrated pull-up resistors can be used instead of the TLE42794.
TLE4279GMXUMA2 Features:
*Output voltage 5 V土2%
*Output current up to 150 mA
*Very low current consumption
*Early Warning
*Power-on and undervoltage reset with programmable delay time
*Reset low down toVg =1V
*Adjustable reset threshold
*Very low dropout voltage
*Output current limitation
*Reverse polarity protection
*Overtemperature protection
*Suitable for use in automotive electronics
*Wide temperature range from -40°C upto 150 °C
*Input voltage range from -42V to 45 V
*Green Product (RoHS compliant)
Low dropout voltage: The TLE4279GMXUMA2 has a low dropout voltage of typically 160mV at 150mA output current, ensuring efficient power conversion.
Wide input voltage range: It can accept input voltages ranging from 2.7V to 40V, allowing it to be used with a variety of power sources.
High accuracy: The voltage regulator provides a highly accurate output voltage of ±2% over the entire operating temperature range.
Overcurrent and overtemperature protection: The TLE4279GMXUMA2 features built-in protection mechanisms to prevent damage from excessive current or temperature.
TLE4279GMXUMA2 Pinout:
TLE4279GMXUMA2 CAD-Model:
Symbol
Footprint
3D-Model
TLE4279GMXUMA2 Application:
The TLE4279GMXUMA2 is suitable for a wide range of applications, including but not limited to:
*Battery-powered devices: It can efficiently regulate the voltage from a battery source, ensuring stable operation of the connected circuitry.
*Industrial control systems: The voltage regulator can provide a reliable power supply for microcontrollers, sensors, and other components used in industrial control systems.
*Automotive electronics: With its wide input voltage range and robust protection features, the TLE4279GMXUMA2 is well-suited for automotive applications, such as infotainment systems or engine control units.
TLE4279GMXUMA2 Alternative:
If the TLE4279GMXUMA2 does not meet your specific requirements, there are alternative voltage regulators available in the market. Some popular alternatives include the Texas Instruments LM1117 and the STMicroelectronics L78 series. It is recommended to review the datasheets and compare the specifications to select the most suitable voltage regulator for your application.

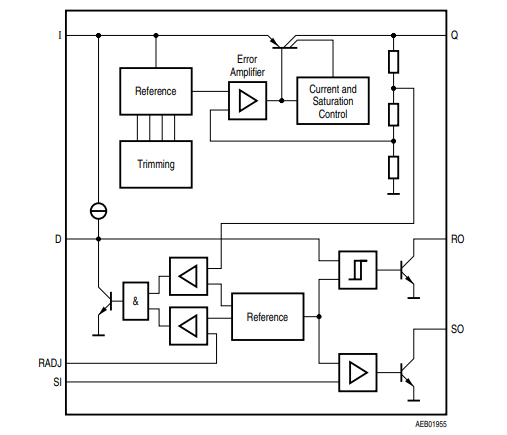

TLE4279GMXUMA2 Block Diagram:

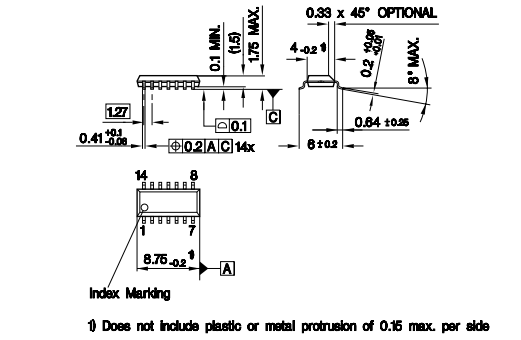

PACKAGE INFORMATION-DSO-14
TLE4279GMXUMA2 Datasheet:
Datasheet PDF
Please DOWNLOAD the datasheets and manufacturer documentation for the TLE4279GMXUMA2 .
Specifications:
Product Comparison:
Conclusion:
The Infineon TLE4279GMXUMA2 is a versatile and reliable low dropout voltage regulator suitable for a wide range of electronic applications. With its compact size, high efficiency, and robust protection features, it provides a stable and accurate 5V power supply. By referring to the datasheet and comparing specifications, you can confidently integrate the TLE4279GMXUMA2 into your design and ensure reliable power delivery for your electronic devices.
