ULN2803ADWR: Datasheet, Pinout, Overview

The ULN2803ADWR is a popular high-voltage, high-current Darlington transistor array integrated circuit (IC) that is commonly used in various electronic applications. In this article, we will provide a detailed catalog of the ULN2803ADWR, including its overview, pinout, CAD model, features, applications, alternatives, block diagram, package, datasheet PDF, specifications, and a product comparison.

The ULN2803ADWR is an 8-channel Darlington transistor array IC that is designed to handle high-voltage and high-current loads. It consists of eight Darlington pairs, each capable of driving loads up to 500mA and 50V. For ULN2803ADWR daasheet, please swipe to the last two parts.

The ULN2803ADWR features an 18-pin dual in-line package (DIP), with each pin serving a specific function. The pinout configuration of the ULN2803ADWR is as follows:

Pins 1-8: Output 1-8

Pin 9: Common (COM)

Pins 10-17: Input 1-8

Pin 18: Ground (GND)

Symbol

Footprint

3D-Model

The ULN2803ADWR comes with the following key features:

High-voltage and high-current capability

Eight Darlington pairs in a single package

Built-in clamp diodes for inductive load protection

TTL and CMOS compatible inputs

Low saturation voltage

Input and output pins are compatible with various logic families

The ULN2803ADWR is commonly used in various electronic applications, including but not limited to:

*Relay and solenoid drivers

*Motor drivers

*Lamp drivers

*LED displays

*Stepper motor drivers

*Power driver modules

*Interface circuits

While the ULN2803ADWR is a popular choice, there are alternative transistor array ICs available in the market that can be used based on specific requirements. Some alternatives to the ULN2803ADWR include the ULN2003, ULN2804, and ULN2802.

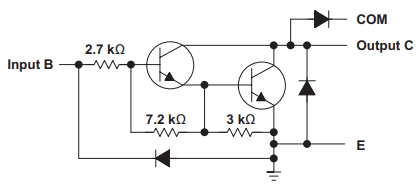

The block diagram of the ULN2803ADWR illustrates the internal structure and functional components of the IC. It typically consists of eight Darlington pairs, input stage, output stage, and protection diodes.

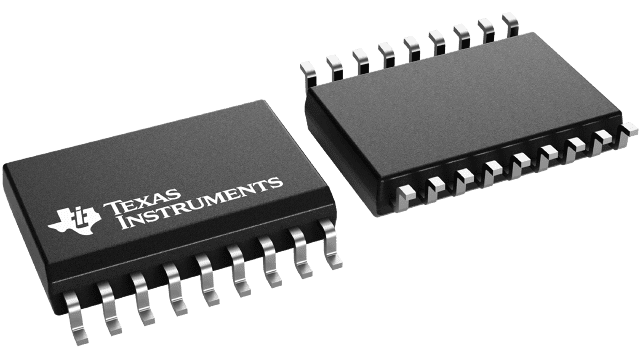

The ULN2803ADWR is available in various package options, including the 18-pin DIP, small-outline integrated circuit (SOIC), and thin small-outline package (TSOP).
