MBRA160T3G Datasheet, Features, Equivalent, and Applications
Introduction:
The MBRA160T3G is a diode designed for high-speed switching applications. This article provides an overview of the MBRA160T3G diode, including its datasheet, features, equivalent components, and applications. Understanding the key specifications and characteristics of the MBRA160T3G can aid in its proper utilization in various electronic circuits and systems.
MBRA160T3G Overview
The device utilizes the Schottky Barrier concept in a power diode with a substantial metal-to-silicon contact area. It incorporates advanced epitaxial construction with oxide passivation and metal overlay contact. It is particularly well-suited for applications that require low voltage, high frequency rectification, or for use as free-wheeling and polarity diodes in surface mount setups where compact size and weight are crucial for the overall system.

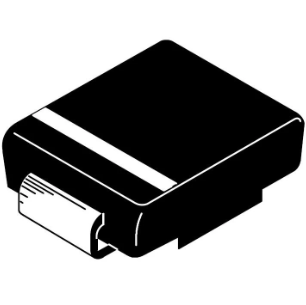

MBRA160T3G Pinout
MBRA160T3G CAD-Models
Symbol
Footprint
3D-Model
![B3`730]1NF4WLMCM%CDF7$L](/upload/image/content/20240109/2896318136cc0cf14845ccac818f2f57.png "2896318136cc0cf14845ccac818f2f57.png")
MBRA160T3G Features
• Small Compact Surface Mountable Package with J−Bent Leads
• Rectangular Package for Automated Handling
• Highly Stable Oxide Passivated Junction
• Very Low Forward Voltage Drop
• Guard−ring for Stress Protection
• NRVBA Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable*
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Mechanical Characteristics:
• Case: Epoxy, Molded
• Weight: 70 mg (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
• Shipped in 12 mm tape, 5000 units per 13 inch reel
• Polarity: Cathode Lead Indicated by Polarity Band
• ESD Ratings:
♦ Machine Model = C
♦ Human Body Model = 3B
Features of MBRA160T3G:
1. High-Speed Switching: The MBRA160T3G diode is optimized for high-speed switching applications, making it suitable for circuits that require fast and efficient switching operations.
2. Low Forward Voltage Drop: With a forward voltage drop of 0.48V at 1A, the MBRA160T3G exhibits low power losses, ensuring efficient energy conversion in power electronics applications.
3. Low Reverse Leakage Current: The diode demonstrates a low reverse leakage current of 0.2µA at 60V, ensuring minimal power loss in reverse bias conditions.
4. Surface-Mount Package: The SMB (DO-214AA) surface-mount package offers convenience in PCB assembly, allowing for compact and space-efficient circuit designs.
MBRA160T3G Advantages
MBRA160T3G Applications:
The MBRA160T3G diode finds applications in a wide range of electronic circuits and systems, including but not limited to:
1. Power Supplies: It can be utilized in power rectification and voltage regulation circuits, ensuring efficient power conversion with its low forward voltage drop.
2. Switching Circuits: The high-speed switching capability of the MBRA160T3G makes it suitable for use in fast-switching circuits such as high-frequency converters and switching regulators.
3. Protection Circuits: The diode can serve as a protective element in circuits, safeguarding sensitive components against reverse voltage transients and voltage spikes.
4. Data Communication Systems: Its high switching speed and low power losses make the MBRA160T3G ideal for use in high-speed data communication systems, including telecommunications and networking equipment.
MBRA160T3G Equivalents Components:
The MBRA160T3G is part of the MBRA160 series of Schottky diodes. Equivalent components within this series include MBRA160T1G and MBRA160T1, which have similar electrical characteristics and performance specifications. These diodes can be used interchangeably in many applications where the MBRA160T3G is specified.
MBRA160T3G Functional Block Diagram
![2IZW@J3JD~BWW)GX)7E~~]M](/upload/image/content/20240109/8bcef794529d10889fd73f22fc19c435.png "8bcef794529d10889fd73f22fc19c435.png")
MBRA160T3G Application Circuit
MBRA160T3G Package Dimension
Conclusion:
The MBRA160T3G diode offers high-speed switching capabilities, low forward voltage drop, and low reverse leakage current, making it well-suited for a variety of applications. Its compact SMB (DO-214AA) surface-mount package simplifies installation and compatibility with modern PCB assembly techniques. Equivalent components within the MBRA160 series, such as MBRA160T1G and MBRA160T1, offer similar electrical characteristics. The MBRA160T3G finds applications in power supplies, switching circuits, protection circuits, and data communication systems. Understanding its datasheet, features, and applications allows engineers and designers to effectively incorporate the MBRA160T3G diode into their electronic designs, benefiting from its high performance and efficiency.
