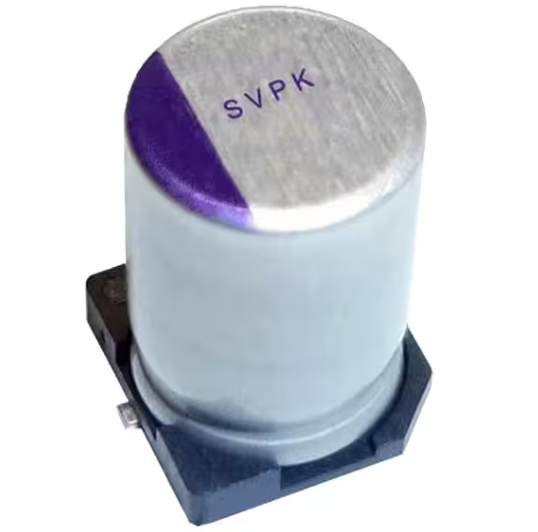

16SVPK330M OS-CON Conductive Polymer Alunimum Solid Capacitors image
Catalog
16SVPK330M Description
16SVPK330M Polarity Marking
16SVPK330M CAD-Model
16SVPK330M Feature
16SVPK330M Application
16SVPK330M Diagram
16SVPK330M Dimension
16SVPK330M PDF
Today we are going to introduce Panasonic Electronic Components 16SVPK330M: Enhancing Efficiency and Reliability in Electronic Devices
16SVPK330M is a OS-CON Conductive Polymer Alunimum Solid Capacitors (Wound Type) features: LOW ESR, High voltage, Large capacitance
Introduction:
In the fast-paced world of electronics, efficiency and reliability are crucial factors that determine the success of electronic devices. Panasonic Electronic Components, a renowned global manufacturer, has consistently pushed the boundaries of innovation to meet these demands. One of their notable products, the Panasonic Electronic Components 16SVPK330M, has gained recognition for its exceptional performance and reliability. This article explores the features and benefits of this component and how it contributes to the advancement of electronic devices.
16SVPK330M Description
System power is determined by 1.04A @ 100kHz ripple current on a high frequency.Electrical device with 22mOhm ESR
(Equivalent Series Resistance).To fully perform the function of 52mA @ 120Hz, a ripple current at low frequency must be provided.
It is recommended to operate at -55°C~125°C for stable operation.
16SVPK330M Polarity Marking
16SVPK330M CAD-Model
Symbol
Footprint
3D-Model
Feature
High voltage (50 V max.)
125 C 1000 h
RoHS compliance, Halogen free
16SVPK330M Features
1.04A @ 100kHz ripple current on a high frequency
a 22mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~125°C
16SVPK330M Applications
The following devices are a lot of Panasonic Electronic Components
16SVPK330M applications of aluminum polymer capacitors.
LED driver power supplies
Phone chargers
Motherboards
Servers and adapters (laptop power supplies)
Medical equipment
Switching Power Supply and DC/DC Converter.
Buck up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
Superior Capacitance:
The Panasonic Electronic Components 16SVPK330M is a surface-mount type aluminum electrolytic capacitor. With a capacitance of 33µF and a voltage rating of 16V, it offers high capacitance in a compact size. This feature makes it suitable for a wide range of electronic applications, including power supplies, audio equipment, and communication devices.
Low ESR and High Ripple Current:
One of the key advantages of the 16SVPK330M is its low equivalent series resistance (ESR) and high ripple current capability. The low ESR ensures minimal energy loss and improved power efficiency, making it ideal for high-performance applications. Additionally, the high ripple current rating enables stable operation under demanding conditions, ensuring reliable performance even in power-hungry devices.
Long Service Life:
Panasonic Electronic Components is committed to delivering products with exceptional durability. The 16SVPK330M is designed to withstand harsh operating conditions, thanks to its high-quality materials and construction. It offers a long service life, ensuring the longevity and reliability of electronic devices.
AEC-Q200 Compliance:
The 16SVPK330M is compliant with the Automotive Electronics Council’s AEC-Q200 standard, which sets rigorous requirements for electronic components used in automotive applications. This compliance ensures that the capacitor meets the industry’s stringent quality and reliability standards, making it suitable for automotive electronics, such as engine control units, infotainment systems, and lighting systems.
RoHS and REACH Compliance:
Panasonic Electronic Components prioritizes environmental responsibility and safety. The 16SVPK330M is compliant with the Restriction of Hazardous Substances (RoHS) directive, which restricts the use of hazardous substances in electronic products. It also complies with the Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulation, ensuring the absence of harmful chemicals in its composition.

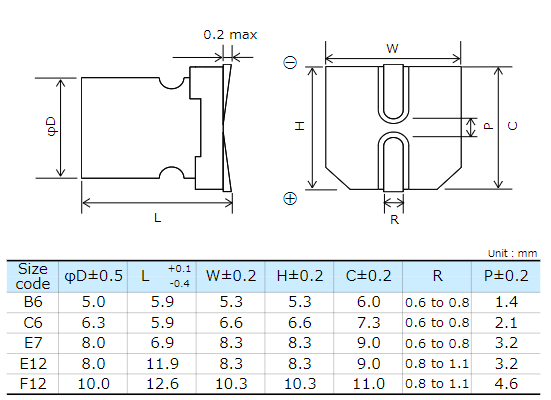

16SVPK330M Dimension
Marking
16SVPK330M PDF
Conclusion:
The Panasonic Electronic Components 16SVPK330M is a high-performance aluminum electrolytic capacitor that offers exceptional efficiency, reliability, and longevity. With its superior capacitance, low ESR, high ripple current capability, and compliance with industry standards, it has become a trusted choice for electronic designers and manufacturers worldwide. Whether in automotive applications or various electronic devices, this component plays a vital role in enhancing performance and ensuring the reliability of electronic systems. Panasonic Electronic Components continues to innovate and deliver cutting-edge solutions that drive the advancement of electronic technology.
