STM8S003F3P6TR 8-bit Microcontrollers Datasheet, Pinout, Schematic

yunying Release time：2024-03-06 Page View：656

Value line, 16-MHz STM8S 8-bit MCU, 8-Kbyte Flash memory, 128-byte data EEPROM, 10-bit ADC, 3 timers, UART, SPI, I²C

Catalog

STM8S003F3P6TR Description
STM8S003F3P6TR Features
STM8S003F3P6TR CAD-Model
STM8S003F3P6TR Pinout
STM8S003F3P6TR Block Diagram
STM8S003F3P6TR Package
STM8S003F3P6TR Typical application with ADC
STM8S003F3P6TR Memory map
STM8S003F3P6TR Alternatives
stm8s003f3p6tr arduino
Specifications
Datasheets
Product comparison

STM8S003F3P6TR Description

The STM8S003F3P6TR is a microcontroller chip. It is part of the STM8S series, which is based on the 8-bit STM8 core architecture. The chip is housed in a small, surface-mount package with 20 pins.The STM8S003F3P6TR microcontroller features a wide range of peripherals and I/O capabilities, making it suitable for various embedded applications. It operates at a maximum frequency of 16 MHz and is built on a high-performance STM8 core with an advanced RISC architecture.

In more detail, The STM8S003F3/K3 value line 8-bit microcontrollers offer 8 Kbytes of Flash program memory, plus integrated true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-art technology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.. They are referred to as low-density devices in the STM8S microcontroller family reference manual (RM0016).The STM8S003F3/K3 value line devices provide the following benefits: performance, robustness and reduced system cost.

STM8S003F3P6TR Features

Some key features

1. Flash Memory: It has a 8 KB Flash memory, which can be used for storing program code and data.

2. RAM: The chip has 1 KB of RAM for storing variables and runtime data.

3. Timers: It includes several 16-bit timers, which can be used for tasks such as generating PWM signals, measuring time intervals, and generating interrupts.

4. UART (Universal Asynchronous Receiver-Transmitter): The chip supports UART communication protocol, allowing for serial communication with other devices.

5. I2C (Inter-Integrated Circuit): It includes an I2C interface, which enables communication with I2C compatible devices such as sensors and displays.

6. SPI (Serial Peripheral Interface): The microcontroller supports SPI, a synchronous serial communication interface commonly used for communication between microcontrollers and peripheral devices.

7. GPIO (General Purpose Input/Output): It provides several GPIO pins that can be configured as inputs or outputs to interface with external components.

8. ADC (Analog-to-Digital Converter): The STM8S003F3P6TR features a 10-bit ADC, which allows for analog voltage measurements.

The STM8S003F3P6TR is a versatile microcontroller suitable for a wide range of applications, including home automation, industrial control systems, consumer electronics, and more.

Core

• 16 MHz advanced STM8 core with Harvard

architecture and 3-stage pipeline

• Extended instruction set

Memories

• Program memory: 8 Kbyte Flash memory; data

retention 20 years at 55 °C after 100 cycles

• RAM: 1 Kbyte

• Data memory: 128 bytes true data EEPROM;

endurance up to 100 k write/erase cycles

Clock, reset and supply management

• 2.95 V to 5.5 V operating voltage

• Flexible clock control, 4 master clock sources

– Low-power crystal resonator oscillator

– External clock input

– Internal, user-trimmable 16 MHz RC

– Internal low-power 128 kHz RC

• Clock security system with clock monitor

• Power management

– Low-power modes (wait, active-halt, halt)

– Switch-off peripheral clocks individually

– Permanently active, low-consumption

power-on and power-down reset

Interrupt management

• Nested interrupt controller with 32 interrupts

• Up to 27 external interrupts on 6 vectors

Timers

• Advanced control timer: 16-bit, 4 CAPCOM

channels, 3 complementary outputs, dead-time

insertion and flexible synchronization

• 16-bit general purpose timer, with 3 CAPCOM

channels (IC, OC or PWM)

• 8-bit basic timer with 8-bit prescaler

• Auto wakeup timer

• Window and independent watchdog timers

Communications interfaces

• UART with clock output for synchronous

operation, SmartCard, IrDA, LIN master mode

• SPI interface up to 8 Mbit/s

• I2C interface up to 400 Kbit/s

Analog to digital converter (ADC)

• 10-bit ADC, ± 1 LSB ADC with up to 5

multiplexed channels, scan mode and analog

watchdog

I/Os

• Up to 28 I/Os on a 32-pin package including 21

high-sink outputs

• Highly robust I/O design, immune against

current injection

Development support

• Embedded single-wire interface module

(SWIM) for fast on-chip programming and nonintrusive debugging

STM8S003F3P6TR CAD-Model

Symbol

Footprint

3D-Model

STM8S003F3P6TR Pinout

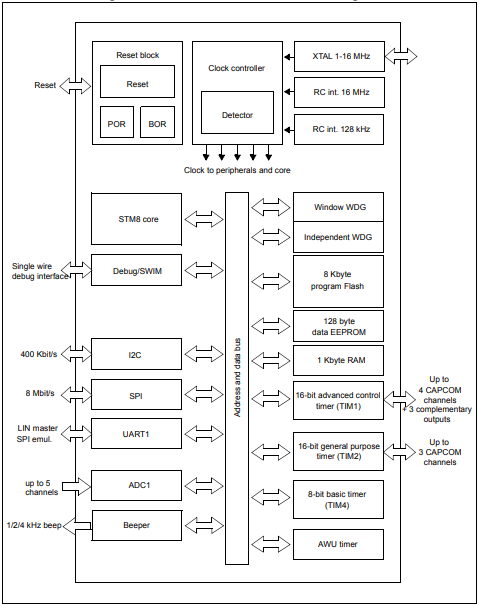

STM8S003F3P6TR Block Diagram

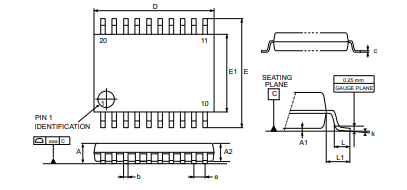

STM8S003F3P6TR Package

STM8S003F3P6TR Typical application with ADC

STM8S003F3P6TR Memory map

STM8S003F3P6TR Alternatives

There are several alternatives to the STM8S003F3P6TR microcontroller that you can consider for your project. Here are a few options:

Atmel ATmega328P: This is a popular 8-bit microcontroller from Atmel (now Microchip) that is widely used in Arduino boards. It offers similar features to the STM8S003F3P6TR, including flash memory, RAM, timers, UART, I2C, SPI, and GPIO. It operates at a maximum frequency of 20 MHz.

NXP LPC810: The LPC810 is an ARM Cortex-M0+ based microcontroller from NXP. It has 4 KB of flash memory, 1 KB of RAM, timers, UART, I2C, SPI, GPIO, and an ADC. It operates at a maximum frequency of 30 MHz.

Microchip PIC16F886: This is an 8-bit microcontroller from Microchip that features 14 KB of flash memory, 368 bytes of RAM, timers, UART, I2C, SPI, GPIO, and an ADC. It operates at a maximum frequency of 20 MHz.

Texas Instruments MSP430G2553: The MSP430G2553 is a low-power 16-bit microcontroller from Texas Instruments. It offers 16 KB of flash memory, 512 bytes of RAM, timers, UART, I2C, SPI, GPIO, and an ADC. It operates at a maximum frequency of 16 MHz.

stm8s003f3p6tr reference manual or stm8s003f3p6tr datasheet can be found in the last two parts, and each comparison parts datasheet can alos be found by clicking Product comparison.

stm8s003f3p6tr arduino

For more info about stm8s003f3p6tr arduino or Using arduino ide for stm8s103f3p6, you could refer the video or arduino.cc<<

Specifications

Manufacturer :: STMicroelectronics

Product Category :: Microcontrollers

Connectivity :: I²C, IrDA, LINbus, SPI, UART/USART

Core Processor :: STM8

Core Size :: 8-Bit

Data Converters :: A/D 5x10b

EEPROM Size :: 128 x 8

Mounting Type :: Surface Mount

Number of I/O :: 16

Operating Temperature :: -40°C ~ 85°C (TA)

Oscillator Type :: Internal

Peripherals :: Brown-out Detect/Reset, POR, PWM, WDT

Product Status :: Active

Program Memory Size :: 8KB (8K x 8)

Program Memory Type :: FLASH

RAM Size :: 1K x 8

Speed :: 16MHz

Supplier Device Package :: 20-TSSOP

Voltage - Supply (Vcc/Vdd) :: 2.95V ~ 5.5V

Datasheets

Datasheets: STM8S003F3P6TR

Product comparison

These parts on the right have similar specifications to STMicroelectronics & STM8S003F3P6TR.


Part Number

Manufacturer

Tolerance

Voltage - Rated

Product Status

Package / Case

Product Category

View Compare
STM8S003F3P6TR

STMicroelectronics

-

-

Active

-

Microcontrollers

View Compare
STM8S103F2P3TR

STMicroelectronics

-

-

Active

-

Microcontrollers

View Compare
STM8S103F3P6

STMicroelectronics

-

-

Active

-

Microcontrollers

View Compare
STM8S103F2P3

STMicroelectronics

-

-

Active

-

Microcontrollers

View Compare

Frequently Asked Questions

What is STM8S003F3P6TR?

STM8S003F3P6TR is housed in a small, surface-mount package with 20 pins.It features a wide range of peripherals and I/O capabilities, making it suitable for various embedded applications. It operates at a maximum frequency of 16 MHz and is built on a high-performance STM8 core with an advanced RISC architecture.

What is the power supply voltage range for the STM8S003F3P6TR microcontroller?

The STM8S003F3P6TR microcontroller uses a power supply voltage range of 2.95V to 5.5V. To guarantee appropriate performance and prevent damage to the MCU, the power supply voltage must remain within the stated range.

What programming language can be used to program the STM8S003F3P6TR microcontroller?

The STM8S003F3P6TR microcontroller can be programmed with the STM8 family's official integrated development environment (IDE), "ST Visual Develop" (STVD), which uses the "C" programming language. In addition, third-party tools and compilers, such as SDCC (Small Device C Compiler), are available for programming the STM8 microcontroller.
