The ULN2803ADWR and ULN2003APWR are two popular choices for driving inductive loads such as relays, stepper motors, solenoids, and more. In this article, we will compare these two ICs in terms of key features, performance, and applications.

Catalog

ULN2803ADWR vs ULN2003APWR Description
ULN2803ADWR vs ULN2003APWR CAD-Model
ULN2803ADWR vs ULN2003APWR Pinout
ULN2803ADWR vs ULN2003APWR Diagram
ULN2803ADWR vs ULN2003APWR Simplified block Diagram
ULN2803ADWR vs ULN2003APWR Typical Application
ULN2803ADWR vs ULN2003APWR Package
Comparison
Specifications
Datasheets
Product comparison

ULN2803ADWR vs ULN2003APWR Description

$JH}8[DEOB1R~{Q~A_4J[I10$

What is ULN2803ADWR

The ULN2803ADWR is an 8-channel Darlington array driver IC designed to handle higher current loads compared to the ULN2003APWR. Here are some key features of the ULN2803ADWR:

- **Channels**: 8 channels to drive multiple loads simultaneously.

- **Darlington Arrays**: Each channel consists of a high-voltage Darlington transistor pair capable of driving high-current loads.

- **Voltage Rating**: Can handle up to 50V output voltage.

- **Continuous Output Current**: 500 mA per channel with a total package current rating of 2.5A.

- **Package Type**: SOIC-18 package for easy PCB mounting.

The ULN2803ADWR is commonly used in applications requiring high-current drive capabilities, such as industrial automation, robotics, and automotive systems.

What is ULN2003APWR

The ULN2003APWR is a 7-channel Darlington array driver IC, offering fewer channels compared to the ULN2803ADWR but still capable of driving moderate to high-current loads. Here are some key features of the ULN2003APWR:

- **Channels**: 7 channels for driving multiple loads.

- **Darlington Arrays**: Each channel features a high-voltage Darlington transistor pair.

- **Voltage Rating**: Can handle up to 50V output voltage.

- **Continuous Output Current**: 500 mA per channel with a total package current rating of 2.5A.

- **Package Type**: PDIP-16 package for through-hole mounting.

The ULN2003APWR is commonly used in applications such as stepper motor control, LED arrays, and relay drivers where moderate to high-current drive capability is required.

ULN2803ADWR vs ULN2003APWR CAD-Model

ULN2803ADWR

Symbol ULN2803ADWR symbol

Footprint ULN2803ADWR footprint

3D-Model

ULN2003APWR

Symbol SYMBOL

Footprint

3D-Model

ULN2803ADWR vs ULN2003APWR Pinout

ULN2803ADWR-pinout-vess

ULN2803ADWR

16-Pin SOIC, PDIP, SO, and TSSOP Top View-vess

ULN2003APWR

ULN2803ADWR vs ULN2003APWR Diagram

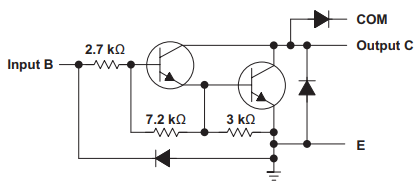

ULN2803ADWR-functional diagram

ULN2803ADWR

ULN2003Block Diagram

ULN2003APWR

ULN2803ADWR vs ULN2003APWR Simplified block Diagram

8O6PJ9H(CIY$9}HDZIO0%YV

ULN2803ADWR

Simplified Block Diagram

ULN2003APWR

ULN2803ADWR vs ULN2003APWR Typical Application

Typical Application

ULN2803ADWR

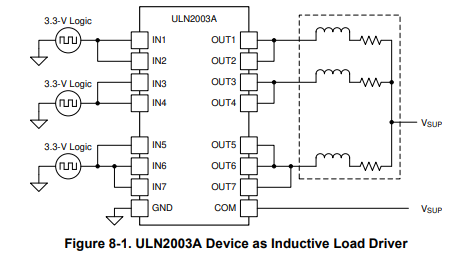

typical application

ULN2003APWR

ULN2803ADWR vs ULN2003APWR Package

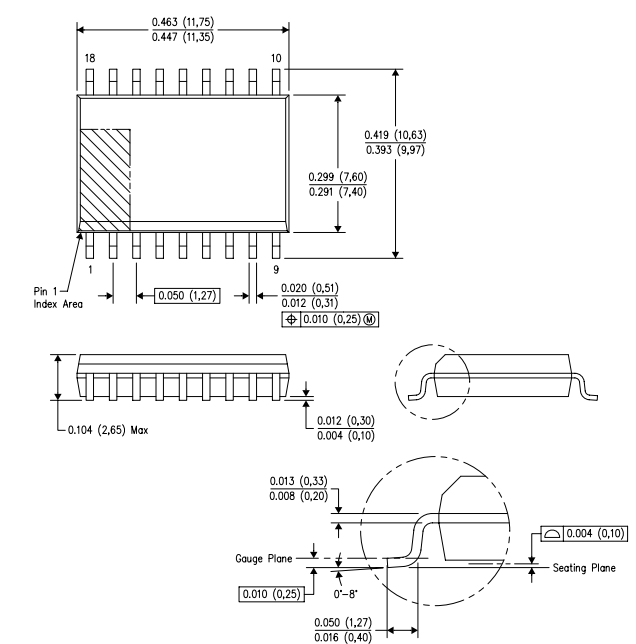

ZT63`8((Z[FA5S1_RP0~]3T

ULN2803ADWR

package

ULN2003APWR

Comparison

Let's compare the ULN2803ADWR and ULN2003APWR based on their key features:

1. Number of Channels: The ULN2803ADWR offers 8 channels compared to the 7 channels of the ULN2003APWR, providing an additional channel for driving more loads simultaneously.

2. Package Type: The ULN2803ADWR comes in an SOIC-18 package, which is more compact and suitable for surface-mount applications, while the ULN2003APWR is available in a PDIP-16 package for through-hole mounting.

3. Applications: The ULN2803ADWR is preferred for applications requiring higher channel count and high-current drive capabilities, such as in industrial automation systems. The ULN2003APWR, on the other hand, is suitable for applications like stepper motor control and LED arrays where fewer channels are needed.

If you have any other product required, feel free to send RFQ to Vess.

Specifications

Manufacturer :: Texas Instruments

Product Category :: Transistors - Bipolar (BJT) - Arrays

Мощность - макс :: -

Напряжение разрыва коллектор-эмиттер (максимум) :: 50V

Насыщение Vce (максимум) @ Ib Ic :: 1.6V @ 500µA, 350mA

Поставщик устройства и его упаковка :: 18-SOIC

Постоянное усиление тока (hFE) (минимум) @ Ic Vce :: -

Рабочая температура :: -40°C ~ 85°C (TA)

Статус продукта :: Obsolete

Тип монтажа :: Surface Mount

Тип транзистора :: 8 NPN Darlington

Ток - коллектор (Ic) (максимум) :: 500mA

Ток - отключение коллектора (максимум) :: -

Частота - переход :: -

Datasheets

Datasheets: ULN2803ADWR

Product comparison

These parts on the right have similar specifications to Texas Instruments & ULN2803ADWR.
