RG6 Vs RG11 Coaxial Cable: Differences And Similarities

Hi, my friends , the wide range of applications of cables may already be known to many, but today's article is to take you through a detailed look at the similarities and differences between the two rg6 and rg11.

Introduction:

Coaxial cables are widely used for efficient transmission of high-frequency electrical signals in various applications, including telecommunications, cable television, and surveillance systems. Two commonly encountered types of coaxial cables are RG6 and RG11. In this article, we will explore the differences and similarities between RG6 and RG11 coaxial cables.

RG6 and RG11 are types of coaxial cables commonly used in various applications, including cable television (CATV), satellite TV, and high-speed internet installations. Both cables are designed to transmit high-frequency signals with minimal loss and interference. Here's a brief overview of RG6 and RG11:

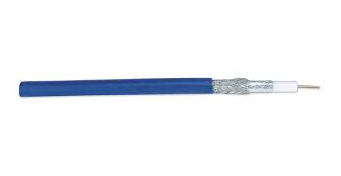

RG6: RG6 is a coaxial cable with a 75-ohm impedance, meaning it is designed to carry signals with a characteristic impedance of 75 ohms. It consists of a central conductor, an insulating layer, a metallic shield, and an outer insulating jacket. RG6 cables are commonly used for residential and commercial applications. They are suitable for transmitting video signals, such as those used in cable TV and satellite TV installations, as well as data signals for high-speed internet (DOCSIS) and networking (Ethernet) purposes. RG6 cables typically have a smaller diameter compared to RG11.

RG11: RG11 is also a coaxial cable, but it has a larger diameter and is capable of carrying signals over longer distances with less signal loss. RG11 cables have a 75-ohm impedance, similar to RG6. The larger diameter of RG11 allows for better signal transmission and lower attenuation (signal loss) over longer cable runs. RG11 cables are commonly used in applications where longer cable lengths are required, such as in large-scale CATV distribution systems, long-distance video surveillance installations, or commercial buildings with extensive cabling needs.

In summary, RG6 and RG11 are both coaxial cables used for transmitting high-frequency signals, with RG11 offering better performance over longer distances compared to RG6. The choice between RG6 and RG11 depends on the specific requirements of the installation, including the distance, signal strength, and application.

Differences between RG6 and RG11 Coaxial Cables:

Attenuation Level: RG11 coaxial cable has a lower attenuation level compared to RG6. This means that RG11 can transmit signals over longer distances without significant signal loss.

Frequency Range: RG11 can transmit signals in a lower frequency range than RG6 coaxial cable. This makes RG11 suitable for applications that require wider broadband and longer transmission distances.

Cable Thickness: RG11 is thicker than RG6 coaxial cable. The larger thickness of RG11 cables is due to the bigger fibers and conductor wire used, which makes the materials more expensive. This also makes RG11 less flexible and more challenging to install in typical home connections.

Price: RG11 coaxial cable is generally more expensive than RG6 due to its thicker construction and higher materials cost. RG6 is often preferred for in-home installations due to its affordability.

Similarities between RG6 and RG11 Coaxial Cables:

Applications: Both RG6 and RG11 coaxial cables are commonly used for transmitting observing camera data, cable television, and other similar applications.

Impedance: Both RG6 and RG11 coaxial cables have an impedance of 75 Ohms. This impedance value ensures efficient signal transmission and compatibility with various devices and systems.

Copper Conductor: Both RG6 and RG11 coaxial cables have a copper-clad steel conductor, which provides good conductivity and signal integrity.

Voltage Rating: Both RG6 and RG11 coaxial cables have a voltage rating of 30V. This rating ensures safe and reliable operation in different environments.

rg6 vs rg59 vs rg11: What is the difference between rg6 vs rg11 VS rg59?

RG6

* **Impedance:** 75 ohms

* **Diameter:** 6.15 mm (0.242 in)

* **Construction:** Copper conductor, aluminum shield, PVC jacket

* **Frequency range:** 5-1000 MHz

* **Applications:** Cable TV, satellite TV, broadband internet

RG59

* **Impedance:** 75 ohms

* **Diameter:** 5.08 mm (0.200 in)

* **Construction:** Copper conductor, aluminum shield, PVC jacket

* **Frequency range:** 5-900 MHz

* **Applications:** Cable TV, satellite TV, video surveillance

RG11

* **Impedance:** 75 ohms

* **Diameter:** 10.31 mm (0.406 in)

* **Construction:** Copper conductor, aluminum shield, PVC jacket

* **Frequency range:** 5-3000 MHz

* **Applications:** Broadband internet, long-distance cable runs

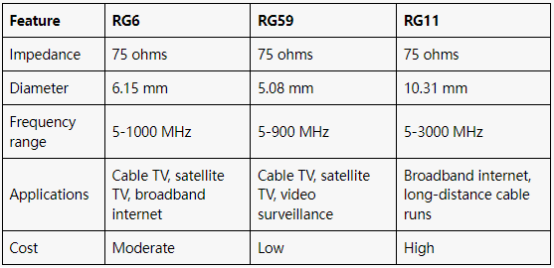

Comparison

Key Differences

* **Diameter:** RG11 has a significantly larger diameter than RG6 and RG59, making it less flexible and more difficult to install.

* **Frequency range:** RG11 has a wider frequency range than RG6 and RG59, making it suitable for higher-bandwidth applications such as broadband internet.

* **Cost:** RG11 is typically more expensive than RG6 and RG59 due to its larger size and higher quality materials.

Choosing the Right Cable

The best cable for your application depends on the specific requirements. If you need a cable for cable TV or satellite TV, RG6 or RG59 will suffice. If you need a cable for broadband internet, RG11 is the better choice.

Frequently Asked Questions

what is the differences between RG59, RG6, RG11

In commercial applications, one primarily encounters 3 types of Coaxial Cables - RG59, RG6 & RG11 - which are in increasing order of cable price, thickness/weight and signal carrying capacity. But all of them have a common impedance of 75 ohms. RG59 Coaxial Cable (nominal diameter - 5mm), is suitable for CCTV (Camera) systems. It can carry signals with minimal losses upto a distance of 250 metres. RG6 Coaxial Cable (nominal diameter - 7mm), finds its applications in Cable TV, Dish TV, TV Antenna, Broadband internet and can carry signals upto 450 metres. RG11 Coaxial Cable (nominal diameter - 10mm), has similar applications as above but used either in harsher environmental conditions and/or where signals need to be carried longer distances upto 600 metres.
