MURD620CTT4G Rectifier Datasheet, Pinout, Specification

MURD620CTT4G has a Switch-mode Power Rectifier DPAK Surface Mount Package

Diode Array 1 Pair Common Cathode 200 V 3A Surface Mount TO-252-3, DPak (2 Leads + Tab), SC-63

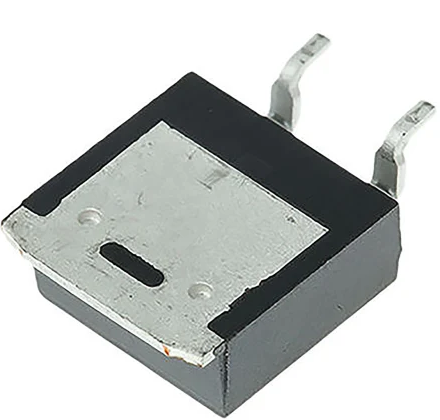

MURD620CTT4G Overview

5L3R(EMZF(%}7SKLU6}`WXJ

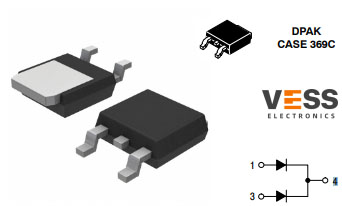

MURD620CTT4G Pinout

pinout-vess

MURD620CTT4G CAD Model

Symbol

symbol

Footprint

3D-Model

I9~5}PM9)DKPA[@M14$P0(K (@2V8_]QVY(8F$P}DHPP%7T

MURD620CTT4G Features

These state−of−the−art devices are designed for use in switching power supplies, inverters and as free wheeling diodes.

Features
• Ultrafast 35 Nanosecond Recovery Time

• Low Forward Voltage Drop
• Low Leakage
• ESD Rating:
Human Body Model = 3B (> 8 kV)

Machine Model = C (> 400 V)

• NRVUD and SRVUD Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Mechanical Characteristics:

• Case: Epoxy, Molded
• Weight: 0.4 Gram (Approximately)

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead and Mounting Surface Temp

MURD620CTT4G Applications

MURD620CTT4G Alternatives

MURD620CTT4G Functional Block Diagram

(XJ_SBJ2IZ)[5X2R_`1FI(M

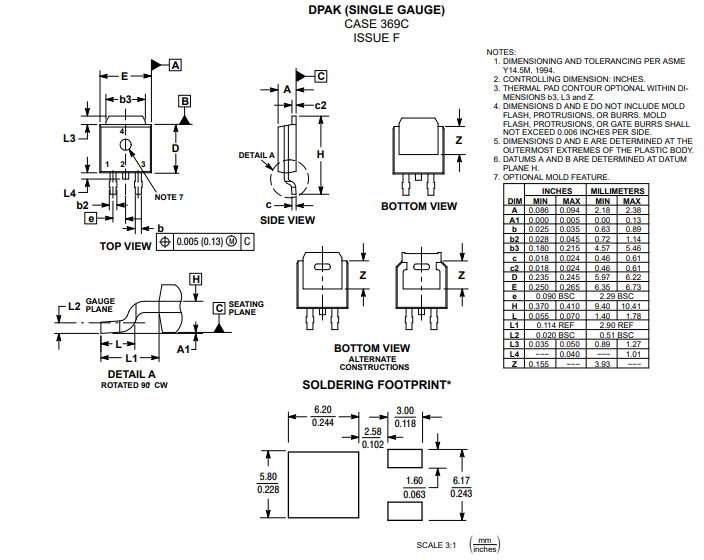

MURD620CTT4G Package Dimension

package dimension
