MPC8270CVVUPEA Overview

The MPC8270CVVUPEA is a specific model of microprocessor in the PowerQUICC II Pro family, manufactured by NXP Semiconductors. It is a highly integrated processor that combines a PowerPC core with integrated communications peripherals, making it suitable for networking and communication applications.Memory Interface: It supports different types of memory interfaces, including SRAM, SDRAM, Flash, and ROM, providing flexibility for various memory configurations.

Memory Interface: It supports different types of memory interfaces, including SRAM, SDRAM, Flash, and ROM, providing flexibility for various memory configurations.

VBR{U~DDX(V`RWX(047`TIU

MPC8270CVVUPEA

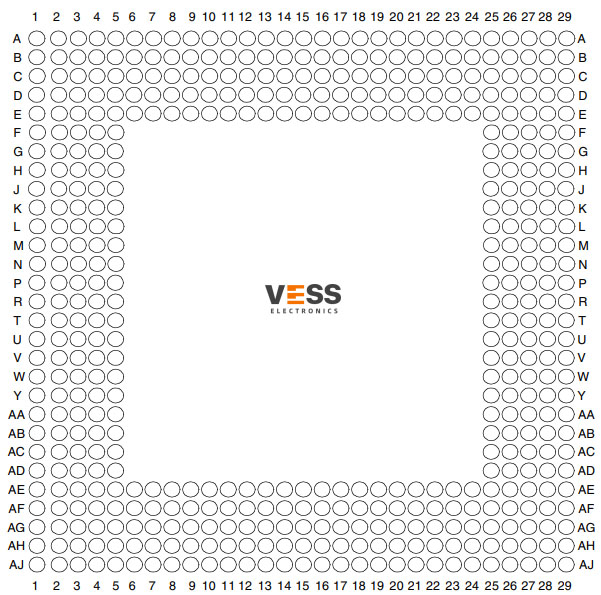

MPC8270CVVUPEA Pinout

MPC8270CVVUPEA-PIN

MPC8270CVVUPEA Features

• Dual-issue integer (G2_LE) core

• Separate power supply for internal logic and for I/O

• Separate PLLs for G2_LE core and for the communications processor module (CPM)

• 64-bit data and 32-bit address 60x bus

• 32-bit data and 18-bit address local bus

• 60x-to-PCI bridge

• PCI bridge

• System interface unit (SIU)

• 12-bank memory controller

• CPU core can be disabled and the device can be used in slave mode to an external core

• Communications processor module (CPM)

• Universal serial bus (USB) controller

• Inverse multiplexing for ATM capabilities (IMA) (MPC8280 only). Supported by eight transfer

transmission convergence (TC) layers between the TDMs and FCC2.

• Transmission convergence (TC) layer (MPC8280 only)

MPC8270CVVUPEA Applications

Broadband Modem and Residential Gateway

Enterprise Access Point
Electricity Meter
Energy Gateway
Industrial Control
POS Terminal

MPC8270CVVUPEA Equivalents

1.MPC8270CVRMIBA: This is another variant of the MPC8270C family that offers similar specifications and functionality.

2.MPC8272CVVPEA: This is a slightly newer version of the PowerQUICC II Pro processor, which is backward-compatible with the MPC8270C but offers additional features and enhanced performance.

3.MPC8377CVVRA: This is a more recent model in the PowerQUICC II Pro family, offering improved performance and additional features compared to the MPC8270C.

MPC8270CVVUPEA Typical Application Circuit

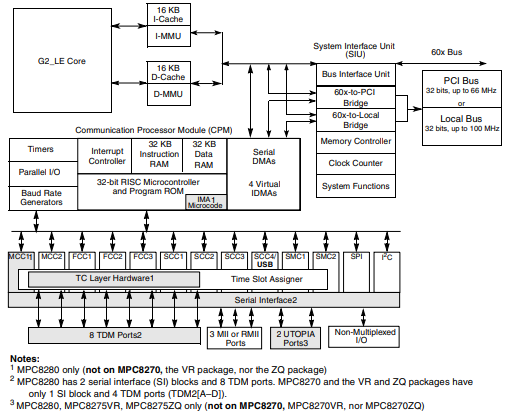

MPC8270CVVUPEA Functional Block Diagram

DIAGRAM

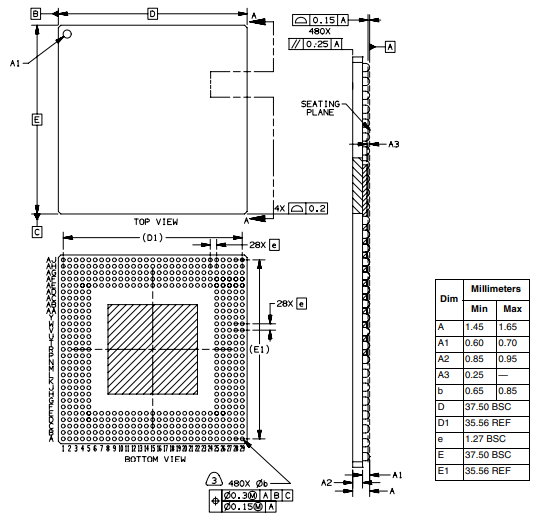

MPC8270CVVUPEA Package Dimension

$}_5BS)`V3X$9B`QP5_{21K0$

How to use MPC8270CVVUPEA

Product comparison
