LRS-350-24 AC DC Converters: Datasheet, Advantages, Video
Video Showcase:Check out this video to see how to use LRS-350-24
LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 1 15VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
Catalog
LRS-350-24 Description
LRS-350-24 Pinout
LRS-350-24 3D-Model
LRS-350-24 Features
LRS-350-24 Advantages
LRS-350-24 Applications
LRS-350-24 Alternatives
LRS-350-24 Wiring Diagram and Installation Guide
Datasheet PDF
Specifications
Product Comparison
Introduction:
Welcome to our product showcase! Today, we are excited to present the exceptional capabilities and high-performance of the LRS-350-24 AC DC Converters. Designed to deliver stable and reliable power output, the LRS-350-24 is an efficient power solution for various applications. In this article, along with the accompanying video, we will delve into its key features, technical specifications, and practical benefits.
LRS-350-24 Description
The LRS-350 series is a compact and enclosed power supply with a power output of 350W and a low-profile design of only 30mm. It can be operated with either a 115V AC or 230V AC input (selectable via a switch). The series offers a wide range of output voltage options, including 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V.
Featuring high efficiency of up to 89%, the LRS-350 is equipped with a built-in long-life fan, enabling it to operate efficiently even in temperatures ranging from -25°C to +70°C at full load. The power supply boasts an extremely low no-load power consumption of less than 0.75W, ensuring compliance with global energy requirements. It also provides comprehensive protection functions and has a 5G anti-vibration capability. Furthermore, the LRS-350 complies with international safety regulations such as IEC/UL 62368-1.
With its impressive performance-to-price ratio, the LRS-350 series serves as an excellent power supply solution for various industrial applications.

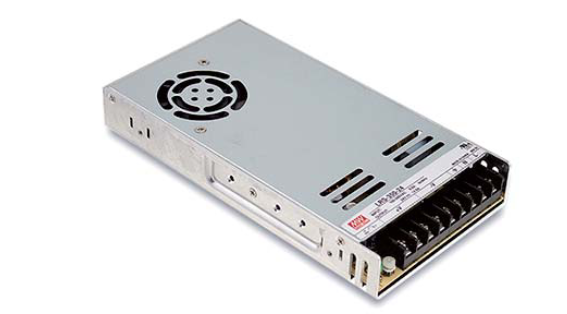

LRS-350-24 3D-Model
LRS-350-24 Features
AC Input: Universal/Full Range
For 5 seconds, withstand a surge of 300 volts.
Power usage with no load is less than 0.3W.
1U low profile and miniature size
Temperatures as high as 70°C can be reached during operation.
Protections against short circuits, overloads, and overvoltages
Free air convection cooling
IEC/EN 60335-1(PD3) and IEC/EN 61558-1, -2-16 compliance for home appliances
Operating altitudes of up to 5000 meters are possible.
Survive a 5G vibration test
High efficiency, extended life, and trustworthiness
3-year warranty
LED indicator for power on
100 percent full load burn-in test
LRS-350-24 Advantages:
The LRS-350-24 AC DC Converters boast several noteworthy features that set them apart from the competition. With an output of 24V and 14.6A, these converters provide a robust power supply for your equipment and systems. Their high efficiency ensures optimal energy utilization, leading to cost savings and reduced environmental impact.
Moreover, these converters exhibit excellent stability, ensuring consistent performance even in demanding industrial environments. Their reliable operation guarantees uninterrupted power supply, minimizing downtime and enhancing overall productivity. Additionally, the compact design and advanced thermal management system contribute to their longevity and reliability.
LRS-350-24 Applications
As you can see, these are the LRS-350-24 applications:
Industrial automation machinery
Industrial control system
Mechanical and electrical system
Electronic instruments, equipment, or apparatus
LRS-350-24 Alternatives
While LRS-350-24 is a popular and widely used product, there are alternative AC DC converters available in the market from various manufacturers. Some potential alternatives to the LRS-350-24 could include:
TDK-Lambda LS Series: The LS Series offers a range of AC DC converters with similar power output and efficiency as the LRS-350-24. These converters are known for their compact size, high reliability, and wide operating temperature range.
Delta Electronics PMR Series: The PMR Series from Delta Electronics provides AC DC converters with comparable power output and features. These converters are designed for industrial applications, offering high efficiency, reliability, and built-in protections.
XP Power ECP40 Series: The ECP40 Series from XP Power is another alternative that offers AC DC converters with similar specifications to the LRS-350-24. These converters are compact, efficient, and designed for industrial and medical applications.
MEAN WELL NES Series: Mean Well, the manufacturer of the LRS-350-24, offers other series of AC DC converters as alternatives. The NES Series, for example, provides similar power output and efficiency options with different form factors and additional features.
When considering alternatives to the LRS-350-24, it is important to evaluate factors such as power requirements, efficiency, reliability, available protections, and specific application needs. Consulting with a knowledgeable supplier like us or reviewing product datasheets can help identify suitable alternatives based on individual requirements.

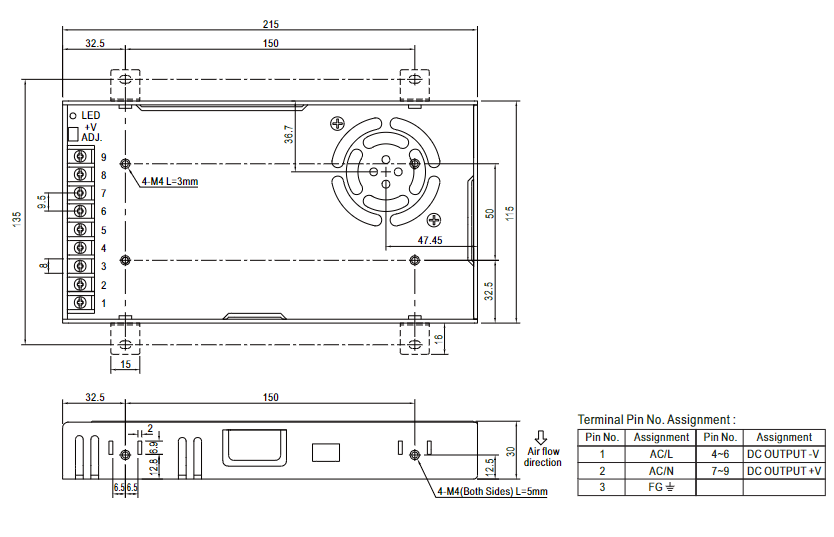

LRS-350-24 Wiring Diagram and Installation Guide:
To simplify the installation process, we have included a clear and concise wiring diagram for the LRS-350-24 AC DC Converters. This diagram illustrates the proper connections and pin configurations, allowing for a hassle-free setup. Whether you are a seasoned professional or a beginner, the wiring diagram will guide you through the installation steps, ensuring a successful integration of the converters into your system.
LRS-350-24 Charts
LRS-350-24-derating curve
LRS-350-24-static chart
Datasheet PDF
Please DOWNLOAD the datasheets and manufacturer documentation for the LRS-350-24.
Specifications
Product Comparison
Conclusion:
The LRS-350-24 AC DC Converters offer an outstanding combination of high-performance, efficiency, and reliability. With their robust power output, stability, and compact design, these converters are ideal for various applications in industrial automation, communication equipment, and more. We encourage you to watch the accompanying video, download the datasheet, and explore the wiring diagram to discover how the LRS-350-24 AC DC Converters can elevate your power solutions. For further inquiries or to make a purchase, please contact our dedicated team.
By following the provided writing suggestions, this article aims to attract readers' attention, provide relevant information, and highlight the key aspects and benefits of the LRS-350-24 AC DC Converters.
