LR44 Battery vs 357 vs SR44: Equivalent, Specifications
Introduction:
When it comes to small-sized batteries commonly used in various devices, LR44, 357, and SR44 are popular choices. These batteries are compact, widely available, and serve as power sources for a range of electronics. In this article, we will compare LR44, 357, vs SR44 batteries in terms of their equivalency and specifications.
1. LR44 Battery:
The LR44 battery, also known as an AG13 or A76, is a small alkaline button cell battery. It has a voltage rating of 1.5 volts and a capacity of approximately 150-200 mAh. LR44 batteries are commonly used in watches, calculators, remote controls, and other small electronic devices. They are affordable, easy to find, and provide reliable power for low-drain applications.
Dimension

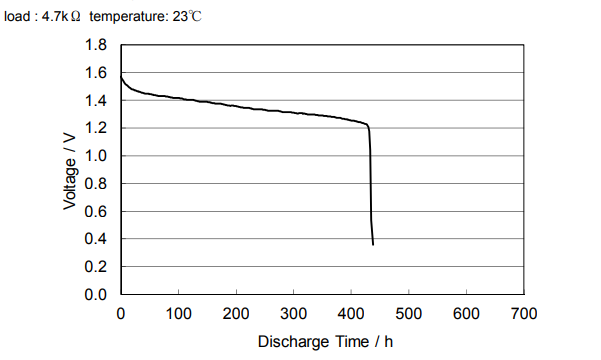

discharge characteristics
monogram

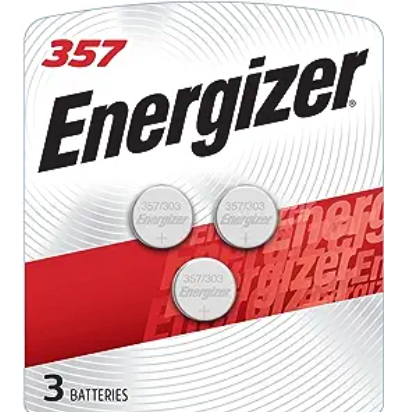

2. 357 Battery:
The 357 battery, also known as SR44W, SR44SW, or SR44, is a silver oxide button cell battery. It has a voltage rating of 1.55 volts and a capacity of around 150-200 mAh. The 357 battery is a popular choice for watches, cameras, medical devices, and other electronics that require a stable power supply. It offers a longer shelf life compared to alkaline batteries and performs well under moderate to high-drain conditions.

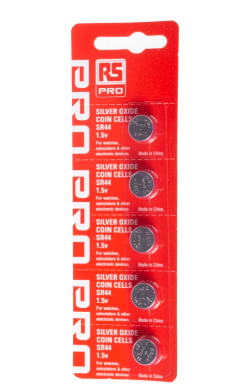

3. SR44 Battery:
![Q_SCWMPMH_AI[D]7$%L80@T](https://www.vessic.com/upload/image/content/20231128/6cff825e6ac22ce80c3b47bf80a4e995.png "6cff825e6ac22ce80c3b47bf80a4e995.png")
The SR44 battery, also known as 357/303, is another silver oxide button cell battery. It has a voltage rating of 1.55 volts, similar to the 357 battery, and a capacity of approximately 150-200 mAh. SR44 batteries are commonly used in watches, cameras, and other precision instruments. They provide stable power output and maintain consistent voltage levels throughout their lifespan.
LR44 Battery vs 357 vs SR44 Key Difference
Equivalency:
LR44, 357, and SR44 batteries are often considered interchangeable due to their similar voltage ratings and physical dimensions. While they may have slight variations in capacity, they can generally be used as substitutes for one another in most devices that require any of these battery types. However, it is always recommended to check the device's manual or consult the manufacturer to ensure compatibility.
Specifications Comparison:
- Voltage: LR44 and SR44 batteries have a voltage rating of 1.55 volts, while LR44 batteries have a voltage rating of 1.5 volts. The difference in voltage is minimal and does not significantly affect compatibility.
- Chemistry: LR44 batteries are alkaline, while 357 and SR44 batteries are silver oxide. Silver oxide batteries often provide more consistent voltage levels and longer shelf life compared to alkaline batteries.
- Capacity: LR44, 357, and SR44 batteries generally have similar capacities ranging from 150 to 200 mAh, ensuring a decent runtime for low to moderate-drain devices.
- Compatibility: LR44, 357, and SR44 batteries are compatible with a wide range of devices, including watches, calculators, cameras, medical instruments, and more. However, it is important to verify compatibility with the specific device before use.
More questions you may be interested:
*Is lr44 the same as 357?
The lr44 vs 357 are not the same batteries, although they are similar in size and voltage.
LR44 is a commonly used alkaline button cell battery with a nominal voltage of 1.5 volts. It is also known by other names, such as AG13, A76, and 357A. LR44 batteries are commonly used in small electronic devices like calculators, watches, laser pointers, and some toys.
On the other hand, 357 is a silver oxide button cell battery with a nominal voltage of 1.55 volts. It is also known as SR44, SR44SW, 357/303, and V357. 357 batteries are often used in cameras, medical devices, and other applications that require a stable voltage output over a long period.
*Button Battery Ir44 vs 357 Application
Button batteries like the IR44 and 357 are commonly used in small electronic devices and various applications. Here's a brief overview of each battery type and some
potential applications for them:
1. **IR44 Battery**:
- The IR44 battery is a button cell battery with a diameter of 11.6 mm and a height of 5.4 mm. It is also known as an LR44 battery or an AG13 battery.
- The IR44 battery typically operates at 1.5 volts and is commonly used in small electronic devices such as:
- Calculators
- Watches
- Toys
- Remote controls
- Small LED lights
- Thermometers
- Hearing aids
2. **357 Battery**:
- The 357 battery is another type of button cell battery with a diameter of 11.6 mm and a height of 5.4 mm. It is also known as an SR44 battery or an AG13 battery.
- The 357 battery also operates at 1.5 volts and is often used in similar small electronic devices, including:
- Watches
- Calculators
- Cameras
- Laser pointers
- Small electronic gadgets
- Medical devices
- Some small toys
In terms of application, both the IR44 (LR44/AG13) and 357 (SR44/AG13) batteries are interchangeable in many devices that require a 1.5-volt button cell battery.
However, it is essential to check the specific requirements of the device to ensure compatibility with the battery being used.
*sr44 vs lr44 battery, what is their differences？
SR44 and LR44 batteries are both commonly used button cell batteries, but they have some differences in terms of chemistry, voltage, and performance.
1. Chemistry: SR44 batteries are silver oxide batteries, while LR44 batteries are alkaline batteries. The chemical composition affects their voltage stability and capacity.
2. Voltage: SR44 batteries have a nominal voltage of 1.55 volts, while LR44 batteries have a nominal voltage of 1.5 volts. The slight difference in voltage may not significantly impact devices that can tolerate a range of voltages. However, some devices may have specific voltage requirements, so it is important to check the device specifications or manufacturer recommendations.
3. Performance: SR44 batteries typically provide a more stable voltage over their lifespan compared to LR44 batteries. This makes them more suitable for devices that require constant and precise voltage levels, such as cameras and medical equipment. LR44 batteries may have a slightly shorter lifespan and a more gradual voltage decline.
4. Cost: LR44 batteries are generally more affordable and widely available compared to SR44 batteries, which tend to be slightly more expensive.
Conclusion:
LR44, 357, and SR44 batteries are popular choices for powering small electronic devices. While they share similar voltage ratings and physical dimensions, they differ in terms of chemistry and minor specifications. These batteries are often interchangeable, but it is advisable to refer to the device's manual or consult the manufacturer for proper compatibility. Understanding the equivalency and specifications of LR44, 357, and SR44 batteries allows users to make informed decisions when selecting the appropriate power source for their devices.
