ESDA6V1W5 Protecting Electronics from ESD Damage: PDF, Features
Clamp Ipp Tvs Diode Surface Mount SOT-323-5 TRANSIL™ array for data protection
In today's world, electronics play a crucial role in our everyday lives. From smartphones and tablets to computers and home appliances, electronic devices have become an integral part of our society. However, these devices are extremely vulnerable to electrostatic discharge (ESD), which can cause irreparable damage. That's where the ESDA6V1W5 comes in – a powerful and reliable ESD protection device designed to safeguard electronics from ESD damage.
What is ESD?
Electrostatic discharge occurs when two objects with different electrical charges come into contact or when an electrical charge builds up on an object and then discharges. This discharge can cause a sudden surge of electricity that can damage or destroy sensitive electronic components. ESD can occur in various environments, including manufacturing facilities, offices, and even in the comfort of our homes.
The Importance of ESD Protection
ESD damage can lead to malfunctions or complete failure of electronic devices. This can result in costly repairs, loss of data, and even loss of productivity. Therefore, it is essential to implement effective ESD protection measures to ensure the reliability and longevity of electronic systems.
Introducing the ESDA6V1W5
The ESDA6V1W5 is a bidirectional ESD protection device manufactured by STMicroelectronics. It is designed to protect sensitive electronics against ESD events by providing a low-clamping voltage and fast response time.
ESDA6V1W5 Overview
Description
The ESDAxxxWx are monolithic suppressors
designed to protect components connected to
data and transmission lines against ESD.
These devices clamp the voltage just above the
logic level supply for positive transients, and to a
diode drop below ground for negative transients.
ESDA6V1W5 Pinout
ESDA6V1W5 CAD Model
Symbol
Footprint
3D-Model
ESDA6V1W5 Features
Features
■ 2 up to 5 Unidirectional Transil functions
■ Breakdown voltage:
VBR = 6.1 V min. and 25 V min.
■ Low leakage current: < 1 µA
■ Very small PCB area < 4.2 mm2 typically
Benefits
■ High ESD protection level: up to 25 kV
■ High integration
Key Features of the ESDA6V1W5
1. Low Clamping Voltage:
The ESDA6V1W5 features a low clamping voltage, which means it can effectively divert the energy of an ESD event away from the protected circuitry. This helps to prevent damage to the devices and ensures their continued functionality.
2. Fast Response Time:
The ESDA6V1W5 has an ultra-fast response time, which allows it to quickly react to ESD events and divert the excess energy away from the protected circuitry. This ensures that the ESD does not have enough time to cause any damage.
3. Bidirectional Protection:
The ESDA6V1W5 provides bidirectional protection, allowing it to protect against ESD events in both the positive and negative voltage directions. This makes it suitable for a wide range of applications, including those with AC signals or bidirectional data lines.
4. Compact and Space-Saving Design:
The ESDA6V1W5 comes in a small and space-saving SOT-23 package. This compact design makes it easy to integrate into a wide range of electronic devices, including smartphones, tablets, laptops, and other portable electronics.
5. High Reliability:
The ESDA6V1W5 is designed to provide reliable and consistent protection against ESD events. It has a high ESD withstand capability, ensuring that it can handle multiple ESD events without compromising its performance.
ESDA6V1W5 Applications
Main applications
Where transient overvoltage protection in ESD
sensitive equipment is required, such as :
■ Computers
■ Printers
■ Communication systems
■ Cellular phones handsets and accessories
■ Wireline and wireless telephone sets
■ Set top boxes
Applications of the ESDA6V1W5
The ESDA6V1W5 is suitable for a variety of applications where ESD protection is critical. Some common applications include:
- Consumer Electronics: Smartphones, tablets, laptops, gaming consoles, and other portable electronic devices.
- Industrial Automation: Control systems, PLCs, and other industrial electronic equipment.
- Automotive Electronics: Infotainment systems, navigation systems, and other automotive electronic components.
- Medical Devices: Patient monitors, medical imaging equipment, and other medical electronic devices.
ESDA6V1W5 Alternatives
ESDA6V1W5 Typical Application Circuit
ESDA6V1W5 Functional Block Diagram

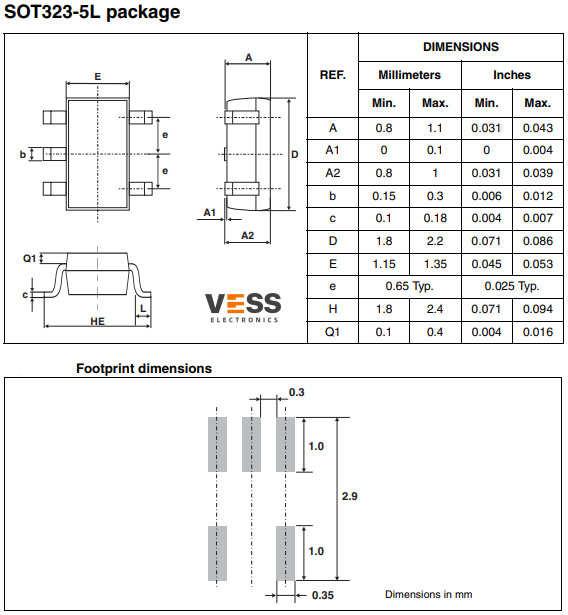

ESDA6V1W5 Package Dimension
Conclusion
ESD damage can have severe consequences on sensitive electronic devices. Implementing effective ESD protection measures is essential to ensure the reliability and longevity of these devices. The ESDA6V1W5, with its low clamping voltage, fast response time, bidirectional protection, compact design, and high reliability, is an excellent choice for protecting electronics from ESD damage. By incorporating the ESDA6V1W5 into electronic systems, manufacturers can ensure that their products are resilient to ESD events and provide reliable performance to their customers.
