74HC595D Shift Register: Disclose Datasheet & Pinout

Hi, guys. Let’s have a look at 74HC595D 8-Bit Shift Register. An embedded device is contained in package 16-SOIC (0.154, 3.90mm Width).It is housed in a Cut Tape (CT) casing. The portion is made up of one element. This component is installed using Surface Mount. The operating temperature range is -40°C to 125°C. The voltage is delivered within a range of 2V6V. This electrical component is part of the 74HC series.

Catalog

74HC595D Description

74HC595D Pinout

74HC595D CAD Model

74HC595D Features

74HC595D Applications

74HC595D Alternatives

74HC595D Typical Application Circuit

74HC595D Functional Block Diagram

74HC595D Package

Datasheet PDF

Specifications

Product comparison

74HC595D Description

The 74HC595D is an 8-bit shift register and latch that operates at high speed using silicon gate C2MOS technology. It achieves fast operation similar to LSTTL but with low power consumption. The device consists of an 8-bit shift register and a storage register. The shift operation occurs when the SCK input transitions to a positive voltage. The contents of the shift register are loaded into the storage register when the RCK input transitions to a positive voltage. The parallel outputs can remain stable during the shift operation because the RCK and SCK signals are independent. The 3-state parallel outputs can be directly connected to an 8-bit bus. This register is suitable for applications such as serial-to-parallel conversion and data receivers. All inputs have protection circuits to prevent damage from static discharge or excessive voltage.

74HC595D Pinout

74HC595D CAD Model

Symbol

Footprint

3D-model

74HC595D Features

(1) High speed

(2) Low power dissipation

(3) Balanced propagation delays

(4) Wide operating voltage range

74HC595D Applications
Here are the Semiconductor and Storage 74HC595D Shift Registers applications.

ROM Chips

Flash Memory

Cache memory in CPU

Data Format Converters

Data Processors

Pseudo Random Pattern Generator

Pulse Extenders

Pattern Recognizers

Interconnectors

Counter

74HC595D Alternatives

74HC164: This is another shift register IC that performs similar functions to the 74HC595D. It has fewer output pins but can still be used for serial-to-parallel data conversion.

74HC595N: This is a variant of the 74HC595D and is widely available. It has the same functionality and pinout as the 74HC595D, but with a different package type.

TPIC6B595: This is a power shift register IC that can handle higher currents than the 74HC595D. It is commonly used in applications where driving high-power loads is required.

MAX7219: Although not a direct replacement for the 74HC595D, the MAX7219 is a popular IC for driving LED displays. It can be used for multiplexing and controlling multiple LEDs or 7-segment displays.

74HC595D Typical Application Circuit

74HC595D Functional Block Diagram

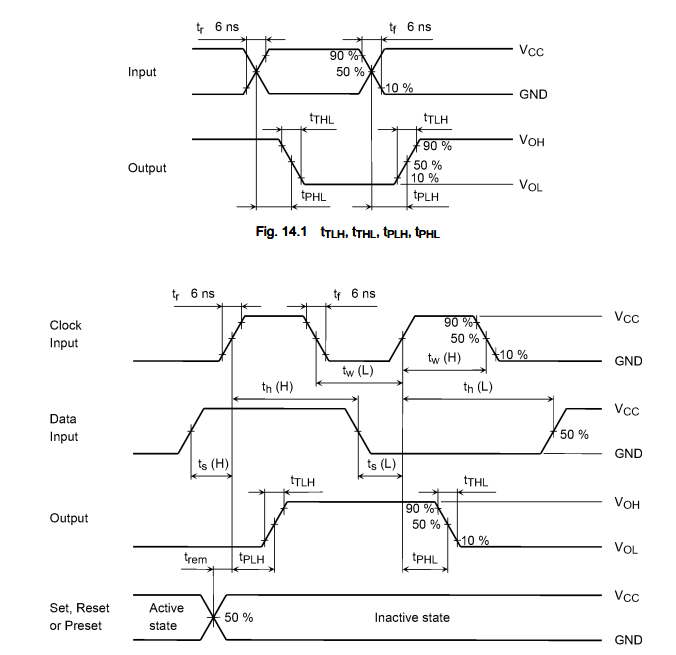

74HC595D Waveform

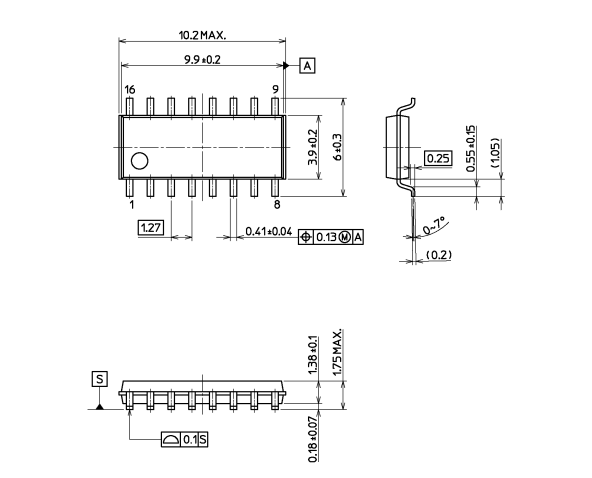

74HC595D Package

Datasheet PDF

Please DOWNLOAD the datasheets and manufacturer documentation for the 74HC595D .

Specifications

Product comparison

Frequently Asked Questions

What is 74HC595D Module Dimensions?

29mm (1.142") long x 15.2mm (0.595") wide x 4.6mm (0.181") tall (not including header pins) Weight: 2.2g (0.078oz)

What is 74HC595D?

The 74HC595D is an 8-bit shift register and latch that utilizes advanced silicon gate C2MOS technology. It offers high-speed operation comparable to LSTTL (Low-power Schottky Transistor-Transistor Logic) while maintaining the low power consumption of CMOS (Complementary Metal-Oxide-Semiconductor) technology. This IC consists of an 8-bit static shift register that transfers data to an 8-bit storage register.
