2n2222a vs 2n2222 Transistor: Are they the same?
Catalog
Introduction
Overview of 2N2222A
Overview of 2n2222
How they work
2N2222A vs 2N2222 - pinout
Overview of 2N2222A
The 2N2222A is designed for low to medium power amplification and switching applications. It has a maximum collector current of 800mA and a collector-emitter voltage of 40V. It is typically used in small-signal amplification, switching circuits, and digital logic applications.
The transistor has a low saturation voltage and a high current gain, making it suitable for applications where a small input signal needs to be amplified or where a small current needs to control a larger current.
The 2N2222A transistor is available in various packages, including through-hole TO-92 and surface mount SOT-23 packages. It is a popular choice due to its low cost, availability, and versatility in various electronic circuits.
Overall, the 2N2222A transistor is widely used in a range of electronic devices, including audio amplifiers, microcontrollers, sensors, and small-scale switching applications.
The 2N2222A and 2N2222 transistors are very similar and often used interchangeably. Both are NPN bipolar junction transistors (BJTs) with three layers of semiconductor material: the emitter, base, and collector.
Overview of 2n2222
The 2N2222 is a popular bipolar junction transistor (BJT) that is commonly used in electronic circuits. It is a general-purpose NPN transistor with three terminals: the emitter, the base, and the collector.
The 2N2222 transistor is designed for low power applications and is capable of switching and amplifying electronic signals. It has a maximum collector current of 800 mA and a maximum collector-emitter voltage of 30 V.
The transistor is widely used in various applications, including audio amplifiers, switching circuits, signal amplification, and digital logic circuits. It is known for its reliability, low cost, and availability.
However, it is important to note that the 2N2222 transistor is a through-hole component and is gradually being replaced by surface mount devices (SMD) in modern electronic designs.
How they work
In terms of function, they work similarly. Transistors are electronic devices used for amplification, switching, and regulation of electrical signals. The 2N2222A and 2N2222 transistors are commonly used for low-power applications. When a small current is applied to the base terminal, it controls the larger current flowing between the collector and emitter terminals.
The main difference between the two is their manufacturing tolerance and specifications. The 2N2222A has a higher manufacturing tolerance, meaning it has more consistent and reliable performance. It also has slightly improved specifications compared to the 2N2222, such as higher maximum collector current and power dissipation.
However, in many applications, both transistors can be used interchangeably without any noticeable difference in performance. It's always best to refer to the datasheets and specifications for the specific transistor you are using to ensure it meets the requirements of your circuit.

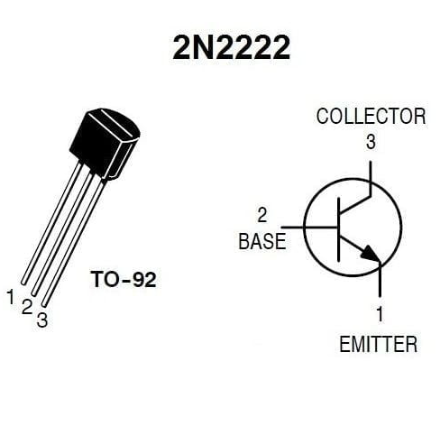

2N2222A vs 2N2222 - pinout
