SN74HC74N Dual D-type Flip-Flop: Datasheet, Pinout, Applications
yunying Release time：2023-11-17 Page View：958
2V~6V 60MHz D-Type Flip Flop DUAL 74HC74 14 Pins 74HC Series 14-DIP (0.300, 7.62mm)
The Texas Instruments SN74HC74N is a dual D-type positive-edge-triggered flip-flop with clear and preset. This article will introduce its pinout, applications and datasheet.
SN74HC74N Description
The Texas Instruments SN74HC74N is a dual D-type positive-edge-triggered flip-flop with clear and preset. It is a logic device that can store one bit of data and change its output state according to the input signals. It has two independent flip-flops, each with a data (D) input, a clock (CLK) input, a clear (CLR) input, a preset (PRE) input, and a complementary output (Q and Q’). The flip-flop can be set or reset by the PRE and CLR inputs, regardless of the clock signal. When PRE and CLR are both high, the flip-flop changes state on the positive-going edge of the clock signal. The SN74HC74N operates from a 2V to 6V supply voltage and can handle clock frequencies up to 60 MHz. It is available in a 14-pin DIP package and is compatible with standard CMOS logic families.
![M0H_625L1BGQCX1)ALCIQ]O](/upload/image/content/20231118/c1691e2a90cea382b4c9d46140697dff.png "c1691e2a90cea382b4c9d46140697dff.png")
SN74HC74N is a specific integrated circuit (IC) chip that belongs to the family of SN74HC series logic devices. It is a dual D-type flip-flop with set and reset inputs. The "SN" in the part number indicates that it is manufactured by Texas Instruments, a well-known semiconductor company.
SN74HC74N Features
It is a dual D-type positive-edge-triggered flip-flop with clear and preset. A flip-flop is a logic device that can store one bit of data and change its output state according to the input signals.
It has two independent flip-flops, each with a data (D) input, a clock (CLK) input, a clear (CLR) input, a preset (PRE) input, and a complementary output (Q and Q’). The flip-flop can be set or reset by the PRE and CLR inputs, regardless of the clock signal. When PRE and CLR are both high, the flip-flop changes state on the positive-going edge of the clock signal.
It operates from a 2V to 6V supply voltage and can handle clock frequencies up to 60 MHz. It is available in a 14-pin DIP package and is compatible with standard CMOS logic families.
It can be used for various applications such as converting a momentary switch to a toggle switch, dividing a clock signal by 2 or 4, or storing data in registers or counters.
SN74HC74N Application
The SN74HC74N IC is commonly used in digital circuit design, especially for applications that require flip-flops to store and synchronize data. It operates on a wide voltage range and offers high-speed performance with low power consumption.
SN74HC74N Pinout

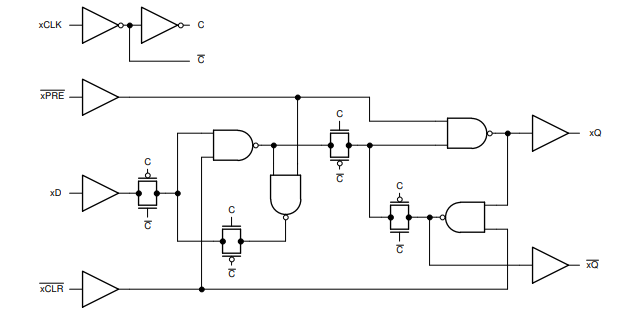

SN74HC74N Functional Diagram
SN74HC74N Typical Application Circuit
SN74HC74N CAD-Model
Symbol
Footprint
3D-Model
Specifications
- Manufacturer :
- Texas Instruments
- Product Category :
- Flip Flops
- Clock Frequency :
- 60 MHz
- Current - Output High, Low :
- 5.2mA, 5.2mA
- Current - Quiescent (Iq) :
- 4 µA
- Function :
- Set(Preset) and Reset
- Input Capacitance :
- 3 pF
- Max Propagation Delay @ V, Max CL :
- 30ns @ 6V, 50pF
- Mounting Type :
- Through Hole
- Number of Bits per Element :
- 1
- Number of Elements :
- 2
- Operating Temperature :
- -40°C ~ 85°C (TA)
- Output Type :
- Complementary
- Product Status :
- Active
- Supplier Device Package :
- 14-PDIP
- Trigger Type :
- Positive Edge
- Type :
- D-Type
- Voltage - Supply :
- 2V ~ 6V
Datasheets
- Datasheets
- SN74HC74N
