PESD5V0L1BA115 ESD Diode: Datasheet, Pinout, Alternatives

Bidirectional ElectroStatic Discharge (ESD) protection diode in a very small SOD323 (SC-76) SMD plastic package designed to protect one signal line from the damage caused by ESD and other transients

PESD5V0L1BA115 is a specific model number for a TVS diode, which is a type of transient voltage suppressor diode. TVS diodes are used to protect electronic circuits from voltage spikes or transients that can damage sensitive components. The PESD5V0L1BA115 TVS diode is designed to protect against electrostatic discharge (ESD) events and has a rated voltage of 5.0 volts. The "BA115" in the model number indicates the package type or form factor of the diode.

Symbol

Footprint

3D-Model

• Bidirectional ESD protection of one line

• Max. peak pulse power: PPPM = 200 W
• Low clamping voltage: VCL = 44 V
• Ultra low leakage current: IRM = 1 nA
• ESD protection up to 30 kV
• IEC 61000-4-2, level 4 (ESD)
• IEC 61000-4-5 (surge); IPPM = 5 A
• Very small SMD plastic package

• Computers and peripherals

• Communication systems
• Audio and video equipment
• Data lines

PESD5V0L2BT: A similar TVS diode from NXP Semiconductors with a higher clamping voltage.

PESD5V0L4BT: Another TVS diode from NXP Semiconductors with a higher peak pulse power rating.
PESD5V0L4BT,215: A variant of the PESD5V0L4BT diode with a different package type.

Package:SOD323

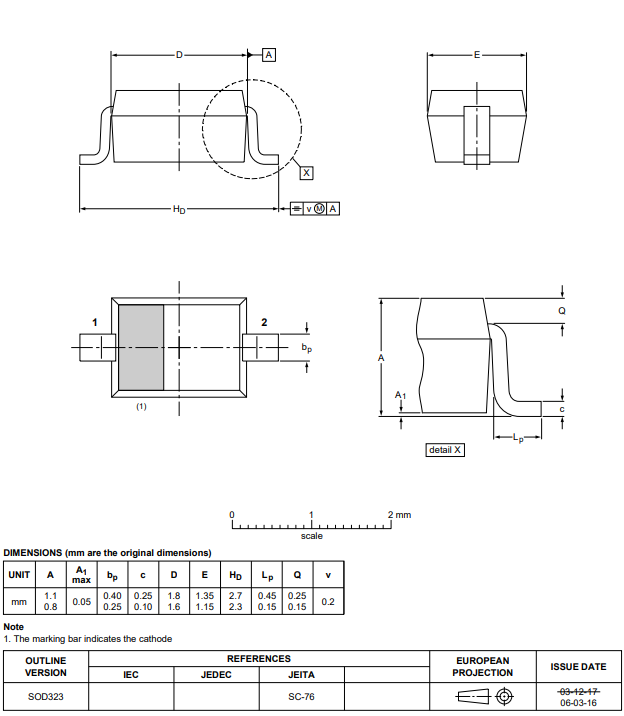

plastic, surface-mounted package; 2 leads; 1.3 mm pitch; 1.7 mm x 1.25 mm x 0.95 mm body
