The MCP6002 is a popular operational amplifier known for its versatility and performance in various electronic applications. This article provides a comprehensive overview of the MCP6002, covering its description, pinout, CAD model, features, applications, alternatives, typical application circuit, functional block diagram, package options, MCP6002 datasheet, specifications, and a comparison with the IM358 op-amp.

The MCP6002 is a dual operational amplifier that operates from a single supply voltage. It offers rail-to-rail input and output capabilities and is designed for low power consumption. The op-amp provides high precision and low offset voltage, making it suitable for a wide range of applications.

MCP6002 Pinout

The MCP6002 features a standard dual op-amp pinout configuration. It consists of two independent operational amplifiers, each with non-inverting and inverting inputs, as well as positive and negative power supply pins.

 MCP6002 E/P

Symbol

Footprint

3D-Model

 MCP6002 I/SN

Symbol

Footprint

3D-Model

The MCP6002 boasts several notable features, including low offset voltage, high common-mode rejection ratio (CMRR), low input bias current, and wide bandwidth. These features contribute to the op-amp’s high precision and excellent performance in various applications.

Gain Bandwidth Product (GBWP): 1 MHz

Quiescent Current: 100 µA (typ.)

Supply voltage range: 1.8V to 6V

Rail to Rail Input and Output

Extended Temperature Range

Space Saving Package Offering:8-lead PDIP, SOIC and MSOP

The MCP6002 finds applications in a wide range of electronic systems. It can be used in sensor interfaces, audio amplifiers, filters, voltage references, and more. The op-amp’s versatility and performance make it suitable for both low and high voltage applications.

• Automotive

• Portable Equipment

• Photodiode Amplifier

• Analog Filters

• Notebooks and PDAs

• Battery-Powered Systems

While the MCP6002 is a highly capable op-amp, it’s important to consider alternative operational amplifiers for specific applications. Some alternatives to the MCP6002 include the IM358 op-amp.

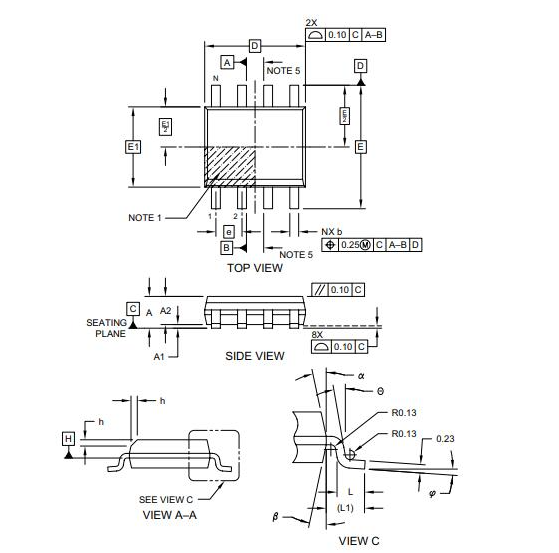

The MCP6002 is available in various package options, such as DIP, SOIC, and SOT-23. Each package has its own dimensions and pin configurations, providing flexibility for circuit board design and integration.

Here is a summary of the key differences, similarities and application considerations between the MCP6002 and LM358 op-amps:

Similarities:

- Both are general purpose operational amplifiers

- Have similar basic specs like voltage supply range, input/output voltage range, gain, etc.

Differences:

- Package/pinout: MCP6002 is SOT-23-5 while LM358 is DIP-8. MCP6002 has smaller footprint.

- Supply current: MCP6002 draws significantly less supply current (500nA vs. 3-4mA for LM358)

- Slew rate: LM358 has higher slew rate (0.5V/us vs 0.1V/us for MCP6002), making it better for audio applications.

Application considerations:

- MCP6002 is better suited for portable/battery-powered devices due to its ultra-low power draw. However, lower slew rate limits use in high-speed signal processing.

- LM358 consumes more power but has sufficient speed for most general purpose amplification needs like audio, measurements, etc. due to its higher slew rate.

- Footprint is an important factor - MCP6002 saves space in tight designs while LM358 provides a proven solution in through-hole projects.

In summary, the MCP6002 is best for low power applications needing a small footprint, while the LM358 remains a good all-rounder due to performance and wide availability in through-hole packages. Choosing between them depends on the priority - power, size or speed. Both are capable general purpose op-amps for different project requirements.

The MCP6002 op-amp is a versatile and high-performance device that finds applications in various electronic systems. Its low power consumption, precision, and flexibility make it a valuable component in numerous circuits. By understanding its features, applications, alternatives, and performance comparisons, engineers and designers can leverage the MCP6002's capabilities to enhance their projects.

Swipe to the end of the article to get MCP6002 datasheet pdf and specification.
