TVS Diode Types,Working Principle,Testing,Selection

Transient-voltage-suppression diodes, commonly known as TVS diodes, are semiconductor devices designed to protect sensitive electronic components from damage caused by transient voltage spikes. These spikes can originate from various sources, including lightning strikes, electrostatic discharge (ESD), inductive switching, and power surges. TVS diodes act as voltage clamps, diverting excess voltage away from vulnerable components and safeguarding their functionality.

A TVS diode typically comprises multiple PN junctions connected in parallel. This structure allows the diode to exhibit a highly non-linear current-voltage (I-V) characteristic. Under normal operating conditions, the diode remains in a high-impedance state, effectively acting as an open circuit. However, when a transient voltage exceeding the diode's breakdown voltage appears, the PN junctions become forward-biased, allowing a large current to flow through the diode. This effectively clamps the voltage across the protected component to a safe level, preventing damage.

tvs diode symbol

The schematic symbol for a TVS diode resembles a standard diode with two additional lines extending from the cathode side. These lines represent the multiple PN junctions within the diode.

TVS diodes find extensive application in various electronic circuits, including:

Power supplies: Protecting sensitive circuitry from power surges and transients.

Data lines: safeguarding data transmission lines from ESD and other transient events.

High-speed interfaces: Protecting high-speed interfaces like USB and HDMI from voltage spikes.

Automotive electronics: Shielding automotive electronic systems from harsh electrical environments.

Consumer electronics: Protecting sensitive components in smartphones, laptops, and other consumer devices.

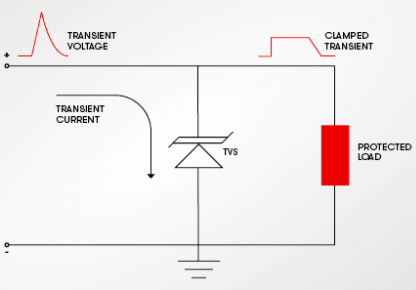

A typical TVS diode application involves connecting the diode in parallel with the component it protects. The diode's anode connects to the positive supply line, while the cathode connects to the component's positive terminal. This configuration ensures that any transient voltage exceeding the diode's breakdown voltage is diverted away from the component, protecting it from damage.

TVS Diodes Circuit Diagram

TVS diodes come in various types, each with unique characteristics and applications:

V-I Charectertics of Unidirectional and Bidirectioncal TVS Diode

Uni-directional TVS diodes: These diodes conduct current in only one direction, offering protection against transients of a specific polarity.

Bi-directional TVS diodes: These diodes conduct current in both directions, providing protection against transients of either polarity.

Single-junction TVS diodes: These diodes have a single PN junction, offering a lower breakdown voltage and faster response time.

Multi-junction TVS diodes: These diodes have multiple PN junctions, offering a higher breakdown voltage and slower response time.

Surface-mount TVS diodes (SMD TVS diodes): These compact diodes are designed for surface-mount assembly, offering space-saving advantages in high-density circuits.

Through-hole TVS diodes: These traditional diodes have leads for through-hole mounting, suitable for applications requiring easy manual assembly.

The working principle of a TVS diode can be understood through its I-V characteristic curve. Under normal operating conditions, the diode exhibits a very high resistance, allowing minimal current to flow. However, when a transient voltage exceeding the diode's breakdown voltage appears, the PN junctions become forward-biased, causing a sudden increase in current. This surge of current effectively clamps the voltage across the protected component to a safe level, preventing damage.

The clamping voltage of a TVS diode is a crucial parameter, indicating the maximum voltage it can withstand before conducting. The selection of a TVS diode for a specific application depends on factors such as the expected transient voltage, clamping voltage requirement, and response time.

Testing TVS diodes involves verifying their functionality and ensuring they are within their specified parameters. Common testing methods include:

Forward voltage drop test: This test measures the voltage drop across the diode when a forward current flows through it.

Reverse leakage current test: This test measures the current that flows through the diode in the reverse direction when a reverse voltage is applied.

Clamping voltage test: This test measures the voltage across the diode when a transient voltage is applied.

Capacitance test: This test measures the capacitance of the diode, which can affect its high-frequency performance.

TVS Diode Selection

Choosing the right TVS diode for a specific application requires careful consideration of several factors:

Transient voltage: The expected amplitude and duration of the transient voltage that the diode needs to protect against.

Clamping voltage: The maximum voltage that the diode should allow across the protected component.

Response time: The speed at which the diode can respond to a transient voltage.

Power rating: The ability of the diode to handle the surge current generated by the transient voltage.

Package type: The physical form factor of the diode, such as surface-mount or through-hole.

Cost: The overall cost of the diode, considering its performance and reliability.

Testing A TVS Diode

The power rating of a TVS diode is a critical parameter that determines its ability to handle the surge current generated by a transient voltage. Choosing a TVS diode with an insufficient power rating can lead to its failure and compromise the protection it offers.

Here's how to determine the appropriate power rating for a TVS diode:

1. Calculate the Peak Pulse Current (IPP):

* The IPP is the maximum current that the TVS diode will experience during a transient event.

* It can be calculated using the following formula:

```

IPP = Transient Voltage / Diode Impedance

```

* The transient voltage is the expected amplitude of the voltage spike.

* The diode impedance is typically specified in the datasheet and varies depending on the clamping voltage and response time of the diode.

2. Choose a TVS Diode with a Power Rating Greater than or Equal to the IPP:

* The power rating of a TVS diode is usually expressed in watts (W).

* Select a diode with a power rating that can handle the calculated IPP without exceeding its maximum operating temperature.

* A safety margin of 20-30% is often recommended to account for variations in transient voltage and diode characteristics.

3. Consider the Pulse Repetition Rate (PRR):

* The PRR is the number of transient events the TVS diode can withstand within a specified time period.

* If the PRR is high, the average power dissipation of the diode must be considered.

* The average power dissipation can be calculated using the following formula:

```

Average Power Dissipation = IPP^2 * PRR * Duty Cycle

```

* The duty cycle is the percentage of time the transient voltage is present.

* Choose a TVS diode with a power rating that can handle the average power dissipation without overheating.

4. Consult the TVS Diode Datasheet:

* The datasheet provides detailed information about the TVS diode's power rating, including peak pulse power, average power dissipation, and thermal derating curves.

* Carefully analyze the datasheet to ensure the selected diode meets the specific requirements of your application.

Additional Tips:

* Consider the operating temperature of the TVS diode. Higher temperatures can reduce the power handling capability of the diode.

* Choose a TVS diode with a package size that can dissipate the generated heat effectively.

* Use multiple TVS diodes in parallel for applications with high surge currents.

By following these steps and carefully considering the application requirements, you can select a TVS diode with the appropriate power rating to ensure reliable protection against transient voltage events.

Devices Used to Suppress Transients

Several devices can be used to suppress transients and protect sensitive electronic components from damage. Here are some of the most common options:

1. TVS Diodes (Transient Voltage Suppressors):

* TVS diodes are specifically designed to clamp transient voltages to a safe level.

* They offer fast response times and high surge current handling capabilities.

* TVS diodes are available in various types and configurations to suit diverse application needs.

2. Zener Diodes:

* Zener diodes can also be used for transient suppression, but they are less efficient than TVS diodes.

* They have a slower response time and lower surge current handling capability.

* Zener diodes are typically used in applications with lower transient voltage levels.

3. Metal Oxide Varistors (MOVs):

* MOVs are voltage-dependent resistors that exhibit non-linear behavior.

* They offer high surge current handling capabilities and are suitable for protecting against high-energy transients.

* However, MOVs have a slower response time and higher leakage current compared to TVS diodes.

4. Gas Discharge Tubes (GDTs):

* GDTs are gas-filled tubes that ionize and conduct current when the voltage exceeds a specific threshold.

* They offer very high surge current handling capabilities and can withstand multiple transient events.

* However, GDTs have a slower response time and higher capacitance compared to other transient suppression devices.

5. Schottky Diodes:

* Schottky diodes can be used for transient suppression in low-voltage applications.

* They offer fast response times and low forward voltage drop.

* However, Schottky diodes have a lower surge current handling capability compared to TVS diodes.

6. Silicon Carbide (SiC) Diodes:

* SiC diodes are relatively new devices that offer superior performance compared to traditional silicon diodes.

* They have a faster response time, higher surge current handling capability, and lower forward voltage drop.

* However, SiC diodes are typically more expensive than silicon-based devices.

TVS Diode Vs Zener

**Similarities:**

* Both TVS diodes and Zener diodes are semiconductor devices that can protect against overvoltage conditions.

* They both exhibit non-linear I-V characteristics, conducting current when the voltage exceeds a specific threshold.

* Both devices can be used in various electronic circuits for transient suppression.

**Differences:**

1. Design and Structure:

* TVS diodes are specifically designed for transient suppression and have multiple PN junctions connected in parallel.

* Zener diodes are designed for voltage regulation and have a single PN junction.

2. Response Time:

* TVS diodes have a faster response time (typically in the picosecond range) compared to Zener diodes (nanosecond range).

* This faster response time makes TVS diodes more effective in suppressing high-frequency transients.

3. Surge Current Handling Capability:

* TVS diodes can handle higher surge currents compared to Zener diodes.

* This higher surge current handling capability makes TVS diodes suitable for protecting against high-energy transients.

4. Clamping Voltage Accuracy:

* TVS diodes have a more precise clamping voltage compared to Zener diodes.

* This precise clamping voltage is crucial for protecting sensitive electronic components from damage.

5. Cost:

* TVS diodes are typically more expensive than Zener diodes.

* However, their superior performance and reliability often justify the higher cost.

6. Applications:

* TVS diodes are preferred for high-speed circuits, high-energy transients, and applications requiring precise clamping voltage.

* Zener diodes are suitable for low-speed circuits, lower transient voltage levels, and voltage regulation applications.

Both TVS diodes and Zener diodes offer transient suppression capabilities, but TVS diodes provide superior performance in terms of response time, surge current handling, and clamping voltage accuracy. The choice between the two devices depends on the specific application requirements and performance priorities.

TVS Diode Vs Zener Diode: Comparison Chart

Additional Considerations:

* TVS diodes have a higher reverse leakage current compared to Zener diodes.

* Zener diodes have a higher capacitance compared to TVS diodes.

* TVS diodes are typically available in a wider variety of package options compared to Zener diodes.

To sum up

TVS diodes offer superior performance for transient suppression applications, while Zener diodes are more suitable for voltage regulation and low-speed circuits. The choice between the two devices depends on the specific application requirements and performance priorities.

TVS diodes play a vital role in protecting sensitive electronic components from damage caused by transient voltage spikes. Understanding their types, working principle, testing, and selection criteria is crucial for designing reliable and robust electronic circuits. By carefully selecting and implementing TVS diodes, engineers can ensure the longevity and performance of their electronic systems, even in harsh electrical environments.

Transient Voltage Suppressor Diodes (TVS Diodes) are critical components that protect electronic components from damage caused by transient voltage spikes.VESS Electronics, a leading distributor of electronic components, is proud to offer a wide range of TVS Diodes from the industry's leading manufacturers.

TVS diodes protect sensitive circuits from damage by clamping transient voltages to safe levels. Their fast response time and high inrush current handling capability make them ideal for a variety of applications including power supplies, data lines, and high-speed interfaces.
